HMIX-622
Kod EAN: 8051706390959
The HMIX-622 is designed for Commercial Audio applications where many microphone or line inputs are required. The Mic/Line section consists of 6 combo inputs (XLR + ¼" Jack) with level control, Mic/Line selector and Phantom power in case of condenser micr...
311,01 € brutto
(inkl. 23% DPH)
252,85 € netto
HMIX-622

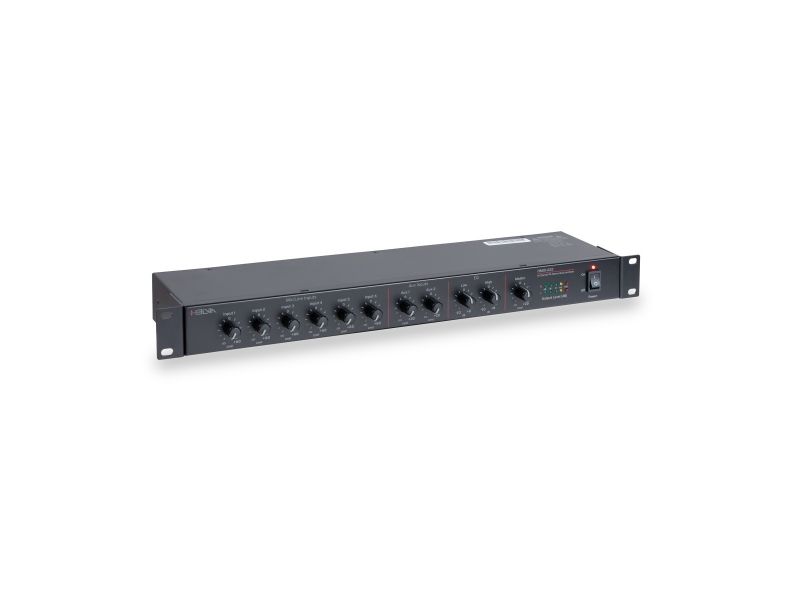

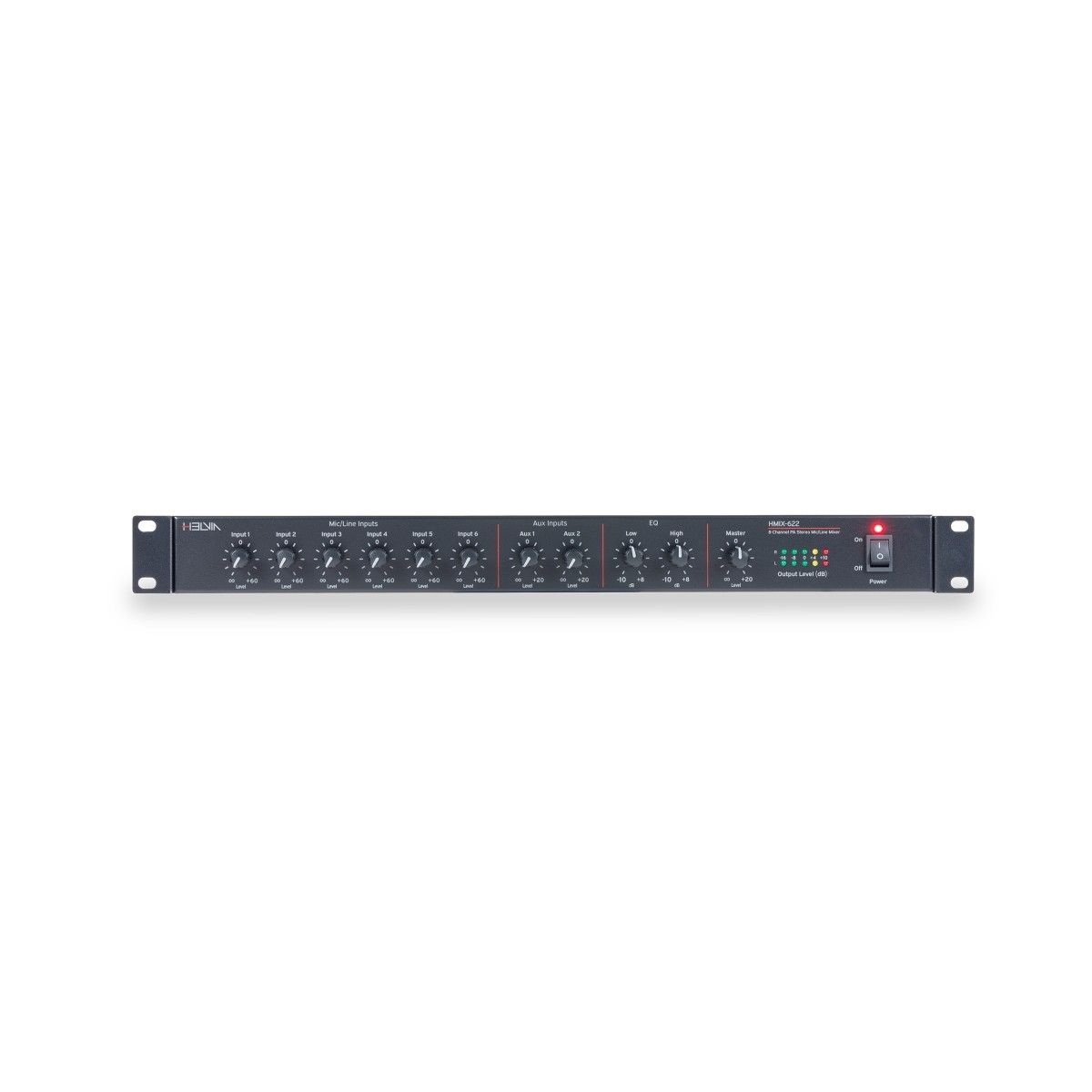

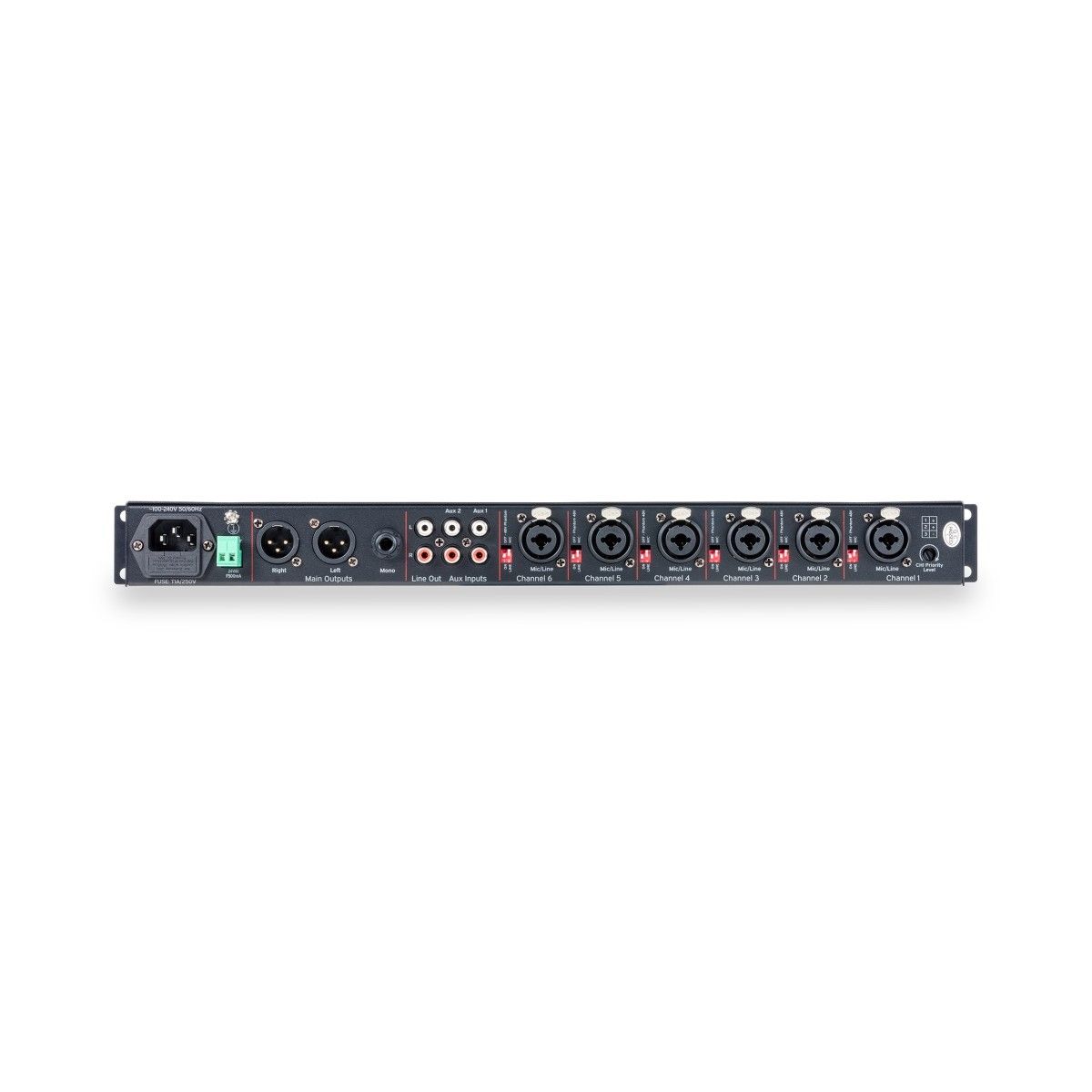

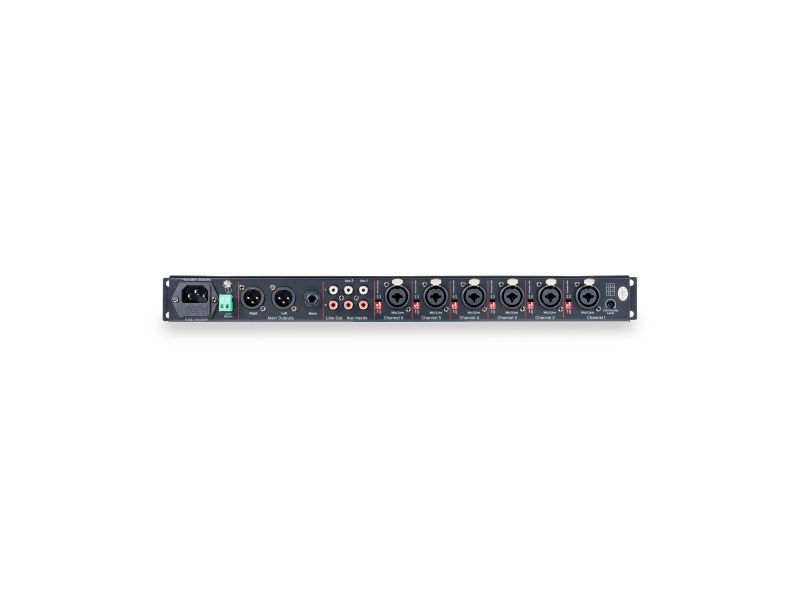

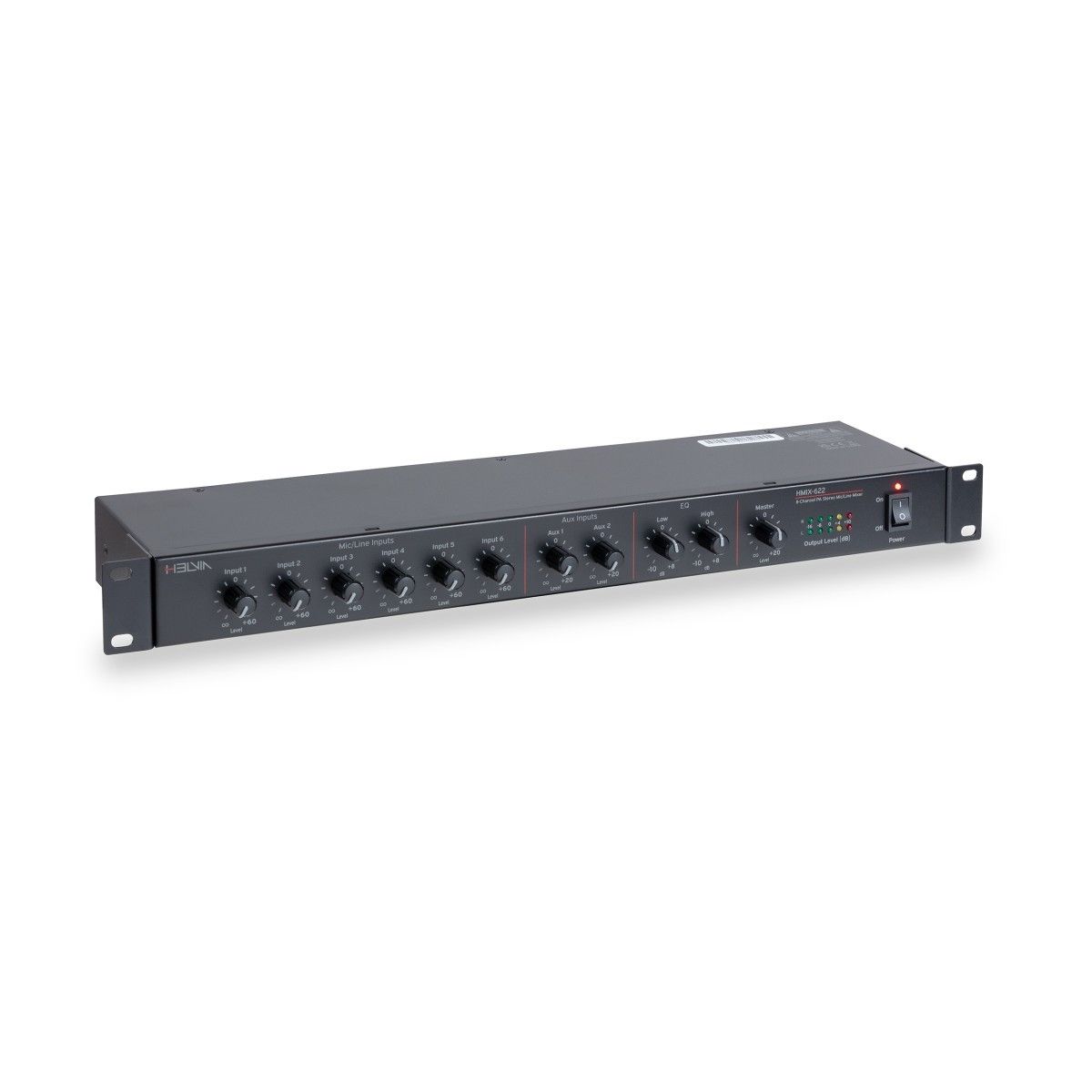

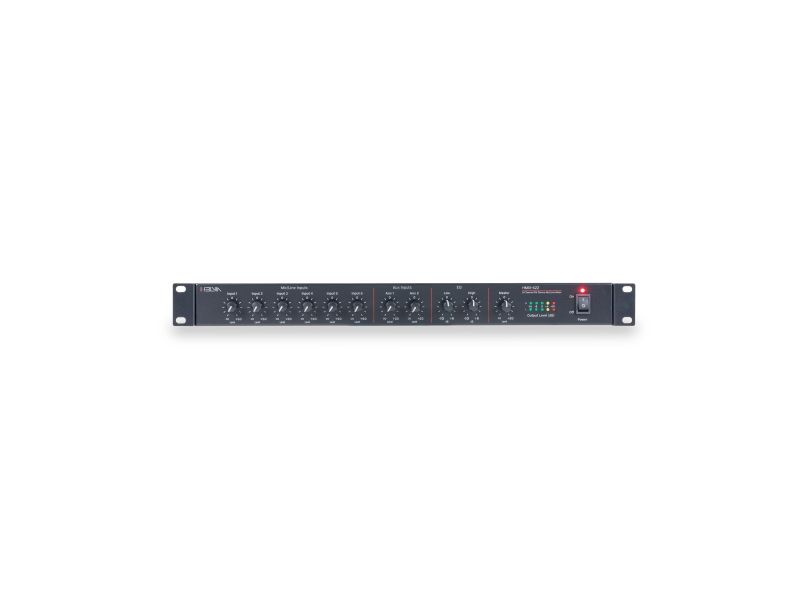

The HMIX-622 is designed for Commercial Audio applications where many microphone or line inputs are required. The Mic/Line section consists of 6 combo inputs (XLR + ¼" Jack) with level control, Mic/Line selector and Phantom power in case of condenser microphones. Channel 1 also has Priority function with adjustable threshold. The Aux section provides 2 stereo RCA inputs, also with independent level, and a stereo li line output with RCA connectors for recording or connecting to other devices. Finally, the master section has stereo output with balanced XLR connectors, mono output with ¼" jack connector, volume control and front stereo VU meter. The mixer accepts DC24V auxiliary power for emergency systems.
- 6 Mic/Line inputs
- +48V phantom power supply
- Priority function (on channel 1) with adjustable threshold
- 2 Stereo Line Inputs
- Stereo Balanced Outputs
- Small size in 1 rack unit
- DC24V auxiliary power input
Parametre
| Mic/Line Inputs | 6x Balanced XLR / 1/4” Combo connectors |
| Aux Inputs | 2x L+R RCA |
| Výstupy | L+R male XLR, 1/4” Jack, L+R RCA (Line Out) |
| Controls | 6x Mic/Line level, 2x Aux level, Treble (High), Bass (Low), Master |
| Input Impedance | 3.3k Ohms (mic/line), 10k Ohms (aux) |
| Mic Frequency Response | 20Hz - 18kHz |
| Line Frequency Response | 14Hz - 20kHz |
| Aux Frequency Response | 10Hz - 23kHz |
| Mic Input Sensitivity | -45dBV |
| Aux/Line Input Sensitivity | -10dBV |
| Mic S/N Ratio | 55dB |
| Aux/Line S/N Ratio | 60dB |
| THD | 0.05% |
| Power Supply | 100-240Vac 50/60Hz (IEC) or 24VDC (terminals) |
| Fuse | T1AL 250V (mains) or F500mA (24DC) |
| Phantom Power | +48V (switchable) |
| Product Size (WxDxH) | 482 x 132 x 45 mm (18.9 x 5.2 x 1.7 in.) |
| Product Weight | 1.7 kg (3.75 lbs.) |
| Carton Size | 565 x 210 x 74 mm (22.2 x 8.3 x 2.9 in.) |
| Carton Weight | 1.9 kg (4,19 lbs.) |
