SM-SCB-CAT5-50

Kod EAN: 8054301335707

Helvia SIGNUM series is a line of cables, connectors and adapters engineered and designed to meet the specifications required by contractors, system integrators and show industry professionals ranging from microphone cables to fire retardant, speaker and...

viac

307,55 € brutto

(inkl. 23% DPH)
250,04 € netto

Staň sa partnerom
Kúp teraz


SM-SCB-CAT5-50

Helvia SIGNUM series is a line of cables, connectors and adapters engineered and designed to meet the specifications required by contractors, system integrators and show industry professionals ranging from microphone cables to fire retardant, speaker and network cables, built with premium quality technologies and satisfying all the certifications required by the residential and commercial field.

  • Flame Retardant and Halogen free cable
  • S/UTP (braided shielding + unshielded twisted pairs)
  • Highly flexible with very robust TPE jacket
  • EtherSound up to 50m

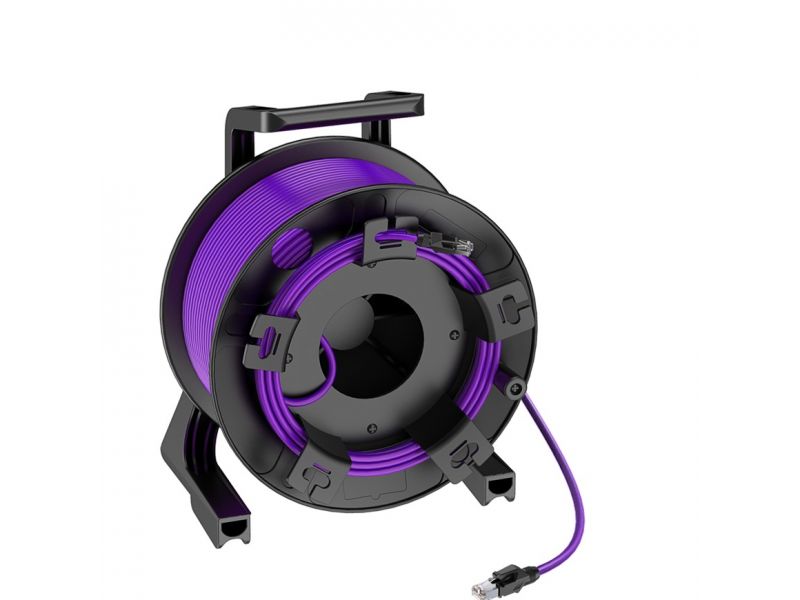

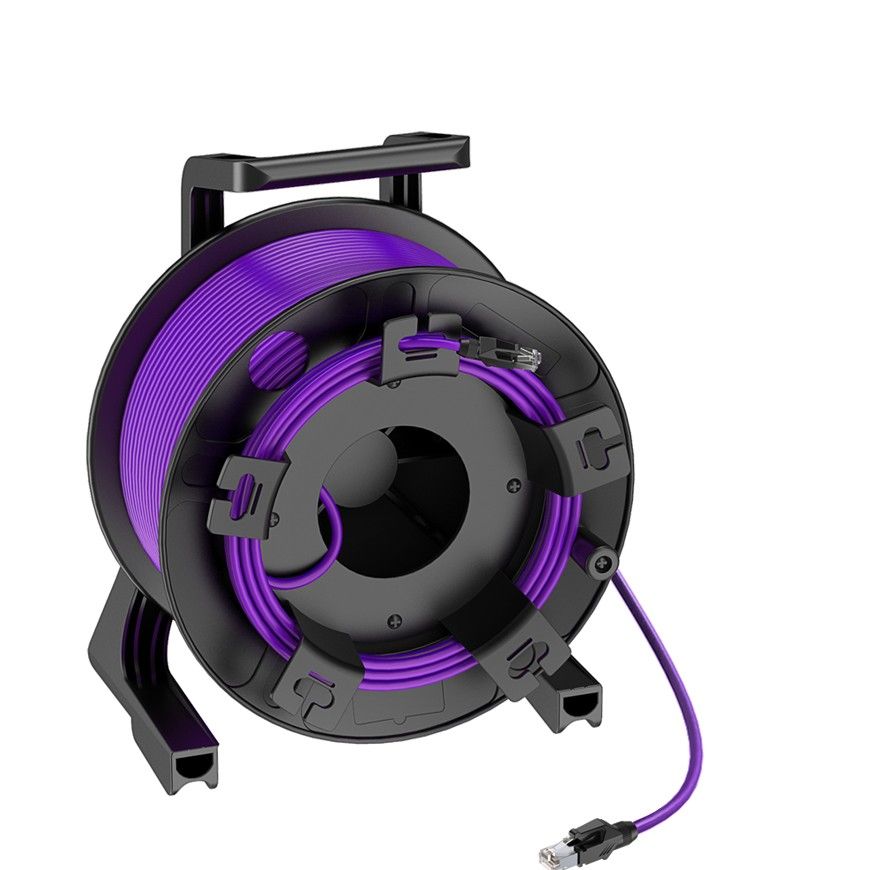

  • Professional cable drum, made from robust PC (Polycarbonate) with integrated handle/brake and detachable cable feeder. Light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV.
  • 50 mt long

Parametre

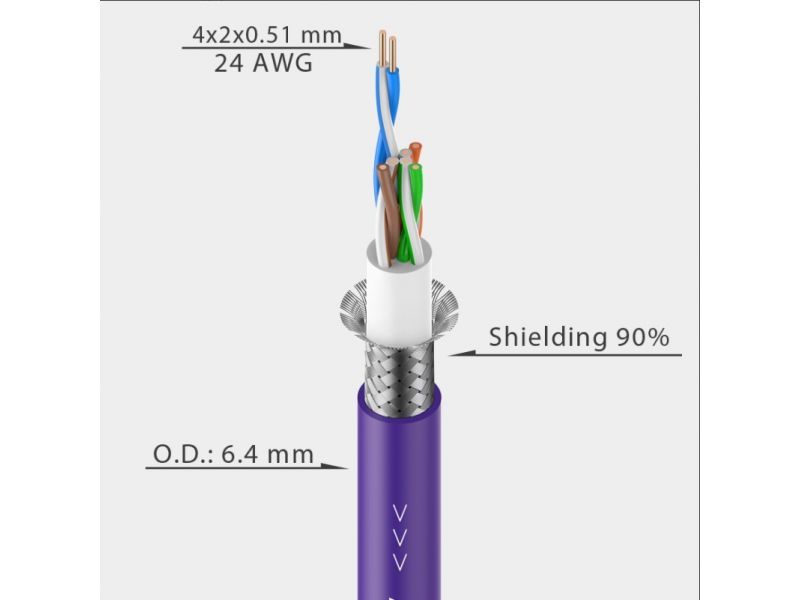

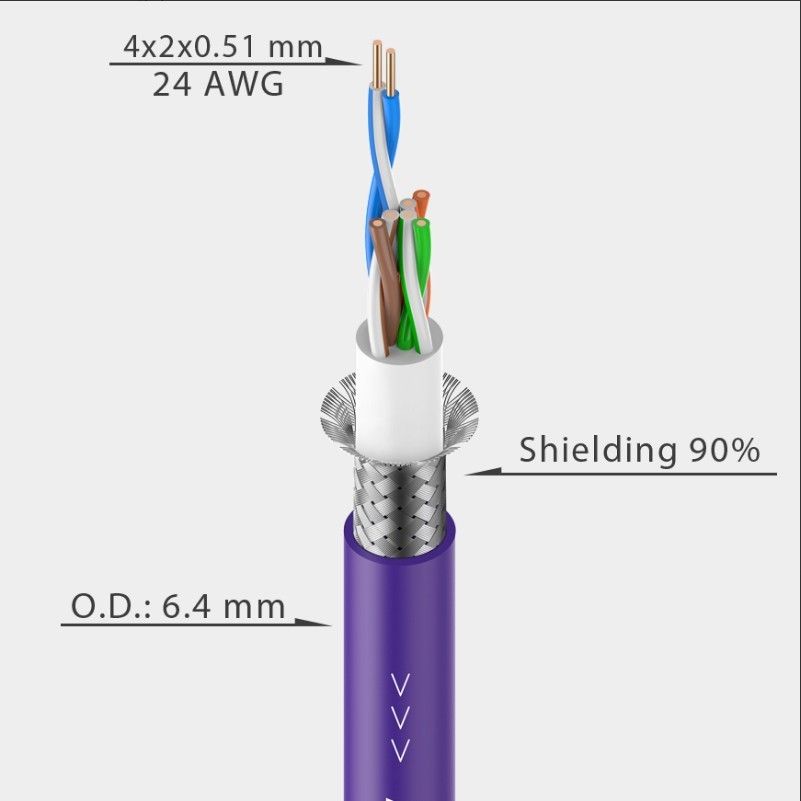

Jacket diameter 6.4 mm
AWG 24
No. of inner conductors 4 x 2 x 0.15 mm
Shielding factor 90 % (Shielding Tin copper braided shielding with 128 x 0.10 mm Tin copper)
Temperature range -40 °C / 85 °C

Na stiahnutie

Produktová karta SM-SCB-CAT5-50 [IT-ENG]-Helvia Cables, Connector, Adapters_User M.pdf
