ATC-110U
Kod EAN:
10 slot audioguide nabíjačka
SM-FRC6-300B
Kod EAN: 8054301335776
Helvia SIGNUM series is a line of cables, connectors and adapters engineered and designed to meet the specifications required by contractors, system integrators and show industry professionals ranging from microphone cables to fire retardant, speaker and...
1 429,00 € brutto
(inkl. 23% DPH)
1 161,79 € netto

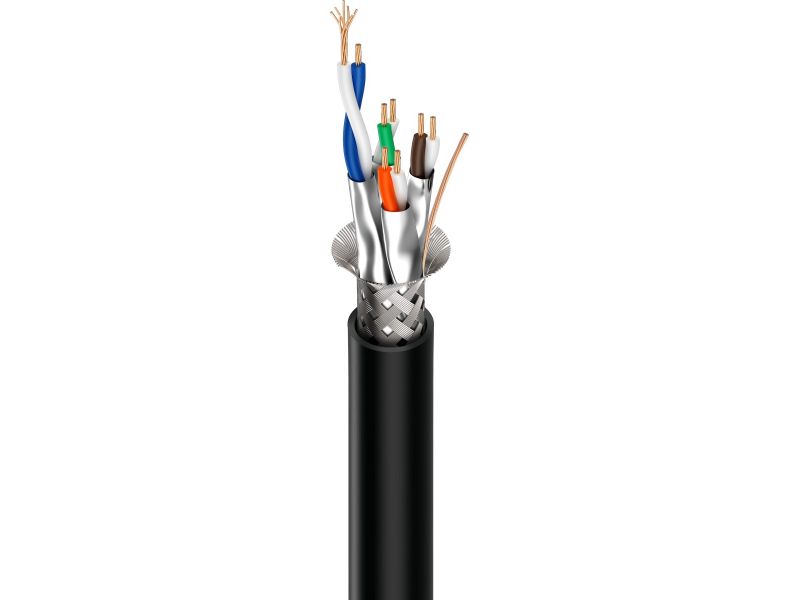

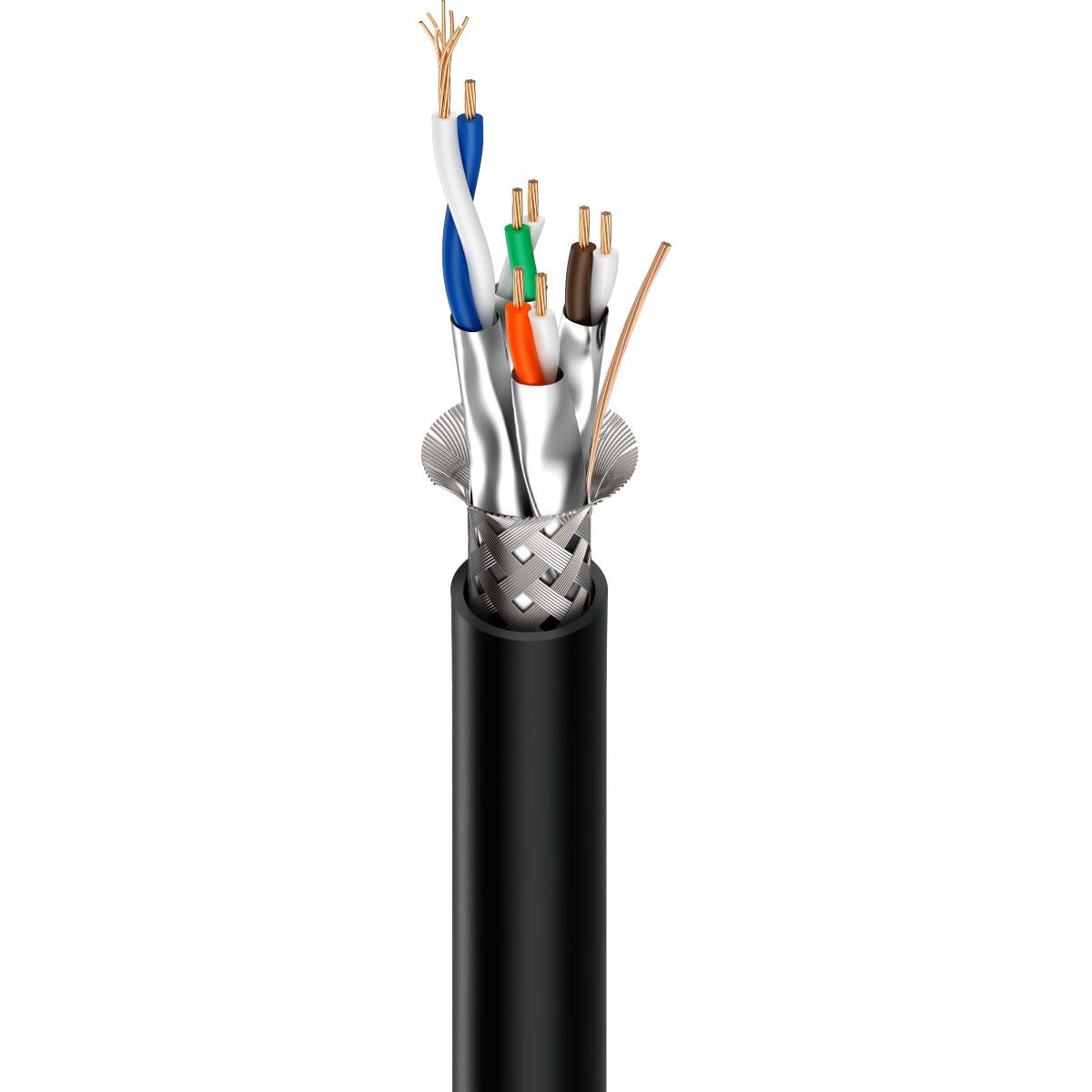

SM-FRC6-300B
Helvia SIGNUM series is a line of cables, connectors and adapters engineered and designed to meet the specifications required by contractors, system integrators and show industry professionals ranging from microphone cables to fire retardant, speaker and network cables, built with premium quality technologies and satisfying all the certifications required by the residential and commercial field.
- Flame Retardant and zero halogen, suitable for permanent installation in places with specific security condition
- Highly flexible due to special stranded wire technology and TPE jacket
- Great durability, outdoor temperature resistant, easy to wind
- Large wire cross-section AWG24 for long distance use up to 70m
- Foam-skin PE insulation and shielded in pairs with an AL foil
- Applications: mobile outdoor transmissions of digital audio/network signals, CAT5e/CAT6e/CAT6ea transmissions
- Black Colour
- 300 mt of length
Parametre
| Jacket diameter | 8 mm |
| AWG | 24 |
| No. of inner conductors | 4 x 2 x 0.22 mm² |
| Copper strand per conductor | 7 x 0.20 mm |
| Temperature range | -40 °C / 60 °C |
| Shielding factor | 100% (braided shielding, 128 x 012 + AL/PT foil + drain wire 7 x 02 mm) |
| Balenie | 300 mt reel |
