SP-15A/350NEO
Kod EAN:
Profesionálny basový reproduktor
NLT4FXX
Kod EAN: 7613187013409
NEUTRIK SPEAKON Connectors Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps. Contact resistance: < 2 mΩ Current rating: 50 A...
25,30 € brutto
(inkl. 23% DPH)
20,57 € netto
NLT4FXX
NEUTRIK SPEAKON Connectors
Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.
- Contact resistance: < 2 mΩ
- Current rating: 50 A (music signal)
- Self-extinguishing according to UL 94V-0

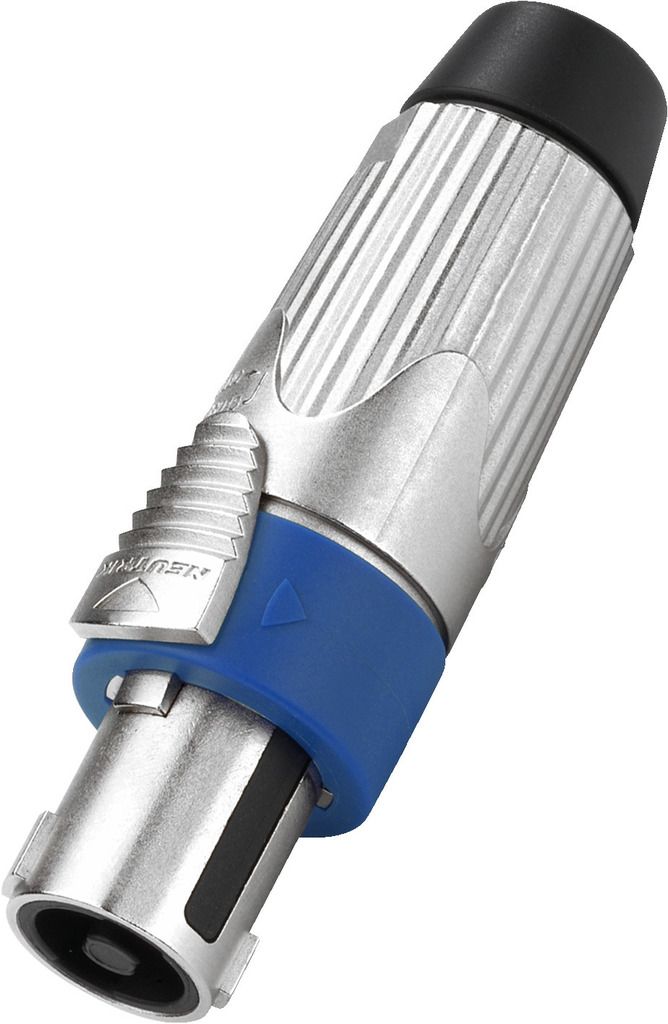

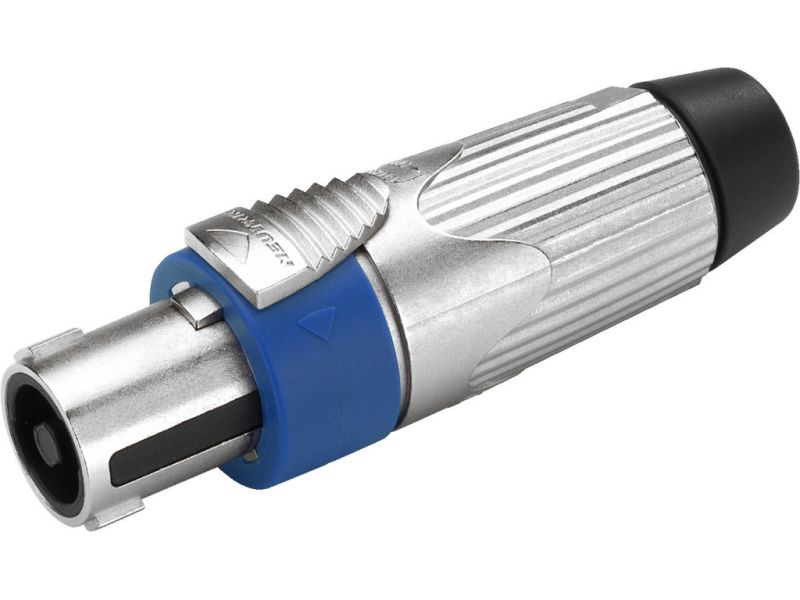

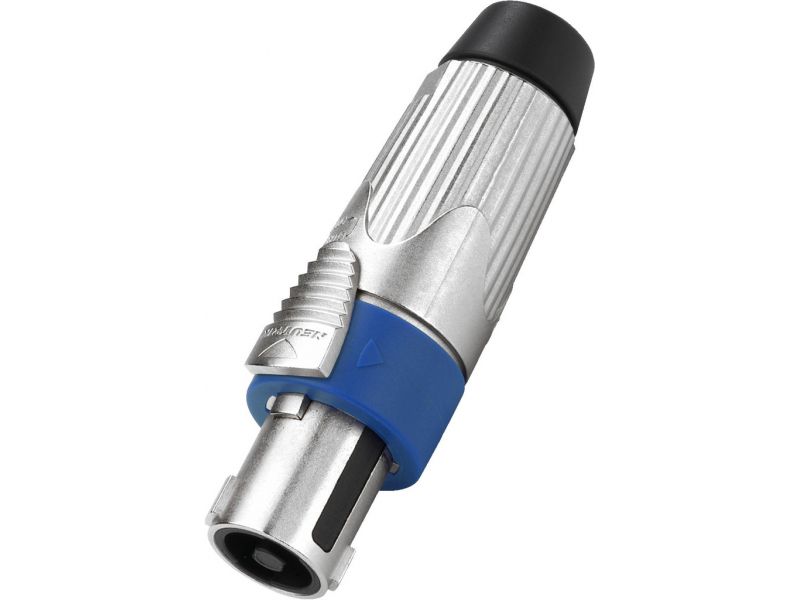

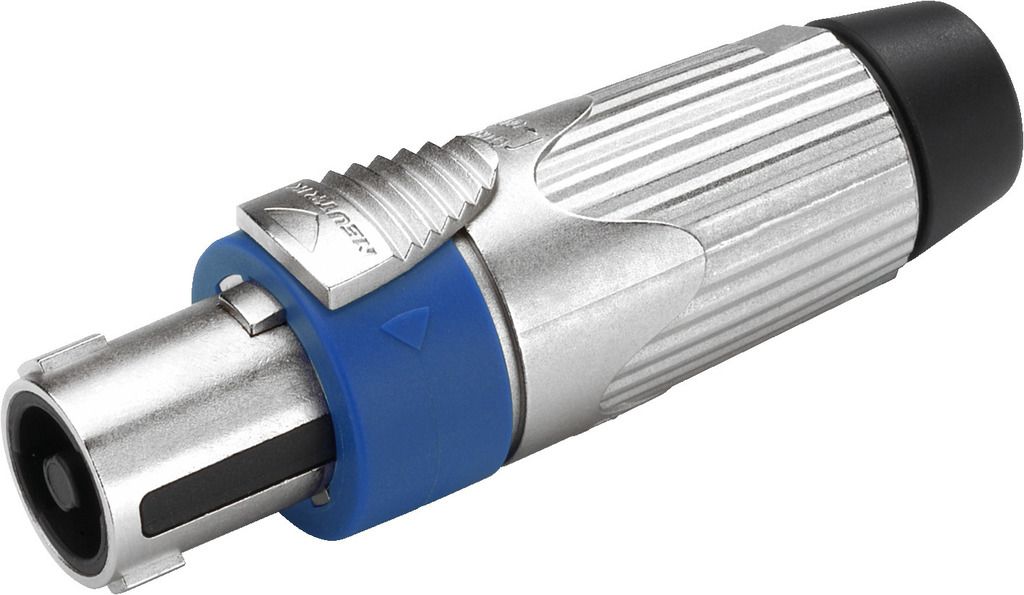

NEUTRIK SPEAKON plug
- Metal body
- Weatherproof when installed
- 4-pole solder contact for litz wires up to 6 mm2
- For cables: Ø 9-16 mm
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametre
| Description | plug |
| Type | NEUTRIK SPEAKON |
| Množstvo | 1 |
| Features | weatherproof when installed |
| Farebné kódovanie | silver/blue |
| Power rating | 250 V/40 A |
| Insulating resistance | > 10 GΩ |
| Dielectric strength | DC 4 kV |
| Certification | UL 94 HB, IEC 68-2-20 |
| Pole number | 4 |
| Cable inlet | Ø 9-16 mm |
| Suitable cable cross section | 6 mm2 |
| Pripojenie | solder contacts |
| Strain relief | self-adjusting clamps |
| Materiál | nickel |
| Admiss. ambient temp. | -30-+80 °C |
| Hmotnosť | 80 g |
