NAC3MPXXB
Kod EAN: 7613187012822
NEUTRIK POWERCON panel jack For mains connection up to ˜ 250 V/20 A Version for mains output Connections for ground, phase and neutral connector Self-extinguishing according to UL-94 V-0 Manufacturer information: Neutrik AGIm alten Ried 1439494...
6,57 € brutto
(inkl. 23% DPH)
5,34 € netto

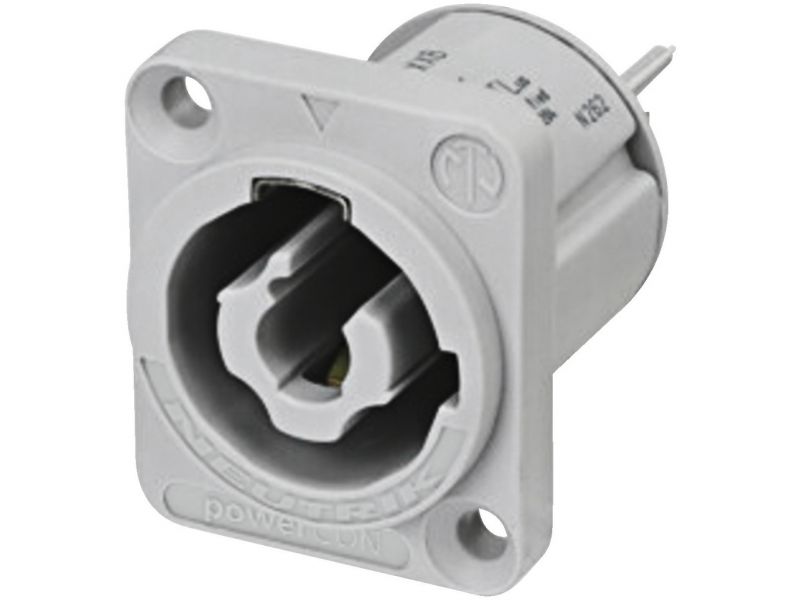

NAC3MPXXB
NEUTRIK POWERCON panel jack
- For mains connection up to ˜ 250 V/20 A
- Version for mains output
- Connections for ground, phase and neutral connector
- Self-extinguishing according to UL-94 V-0
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametre
| Description | panel jack, output |
| Type | NEUTRIK POWERCON |
| Množstvo | 1 |
| Features | latching device, all-insulated contacts |
| Farebné kódovanie | grey |
| Power rating | ˜ 250 V/20 A |
| Insulating resistance | > 10 GΩ |
| Dielectric strength | DC 4 kV |
| Certification | UL, CUL, VDE, Electroswiss |
| Pole number | 2 + PE |
| Pripojenie | blade terminals, 4.8 mm |
| Materiál | silver-plated bronze contacts, plastic |
| Admiss. ambient temp. | -30-+80 °C |

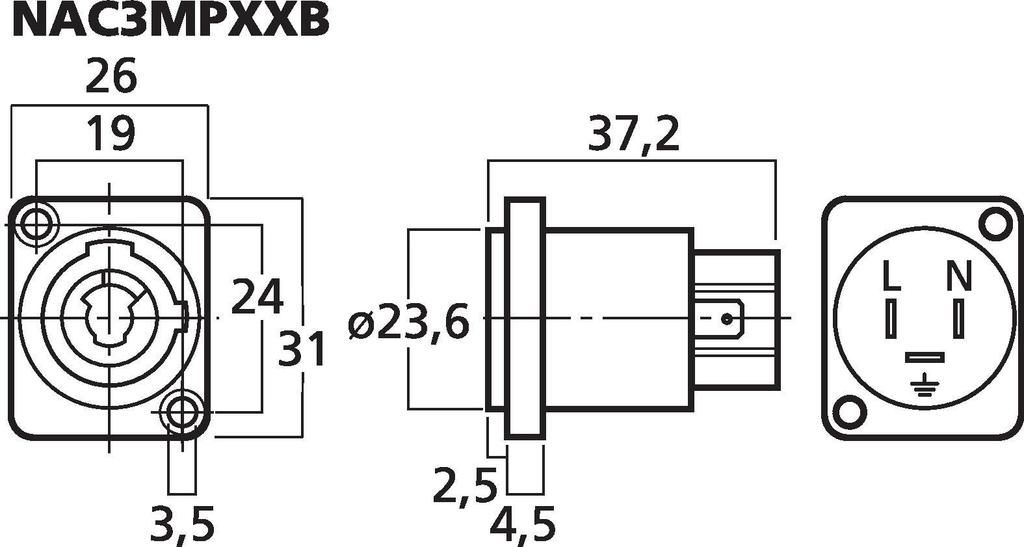

| Dimensions | 26 x 31 x 37.2 mm |
| Dĺžka | 37.2 mm |
| Hmotnosť | 12 g |
