NAC3FXXA-W-S
Kod EAN: 7613187017759
NEUTRIK POWERCON plug Complies with safety requirements of IEC EN 60320-1, VDE-certified For mains connection up to ˜ 250 V/16 A Versions for mains input Connections for ground, phase and neutral conductor Robust version with latching device, all-ins...
12,40 € brutto
(inkl. 23% DPH)
10,08 € netto

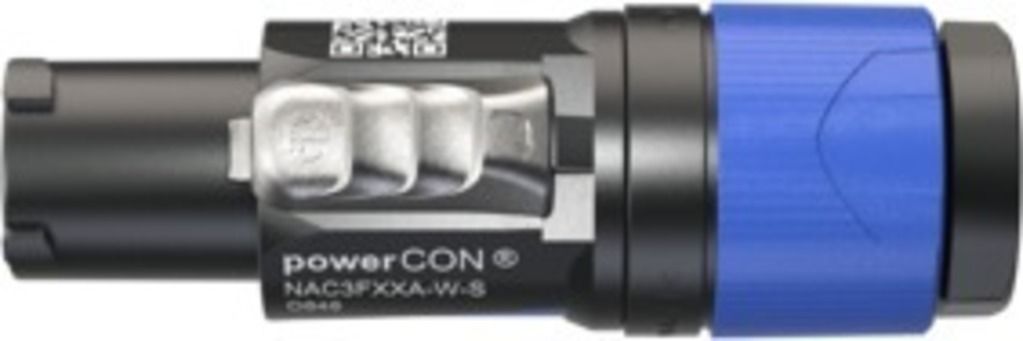

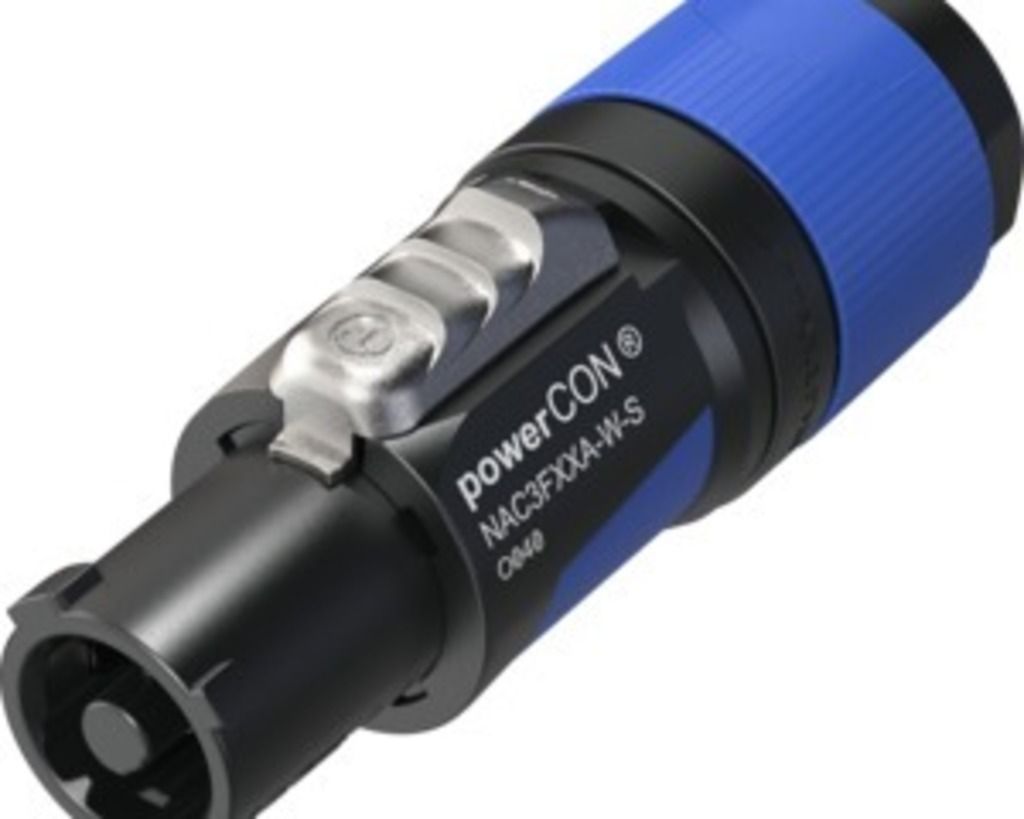

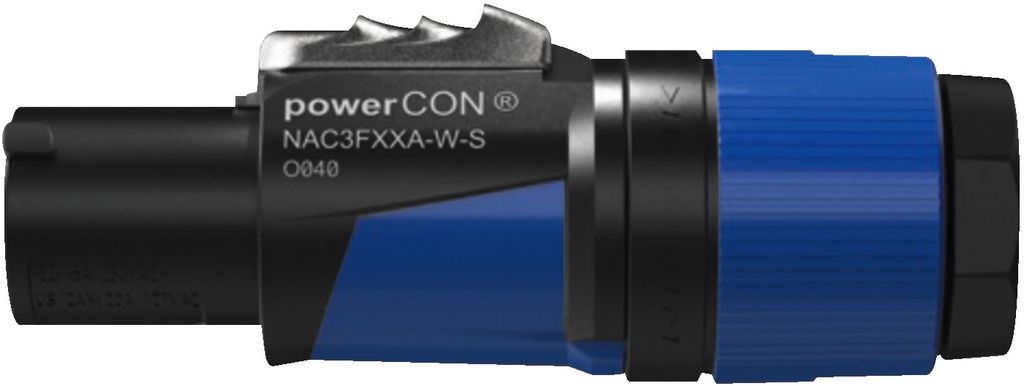

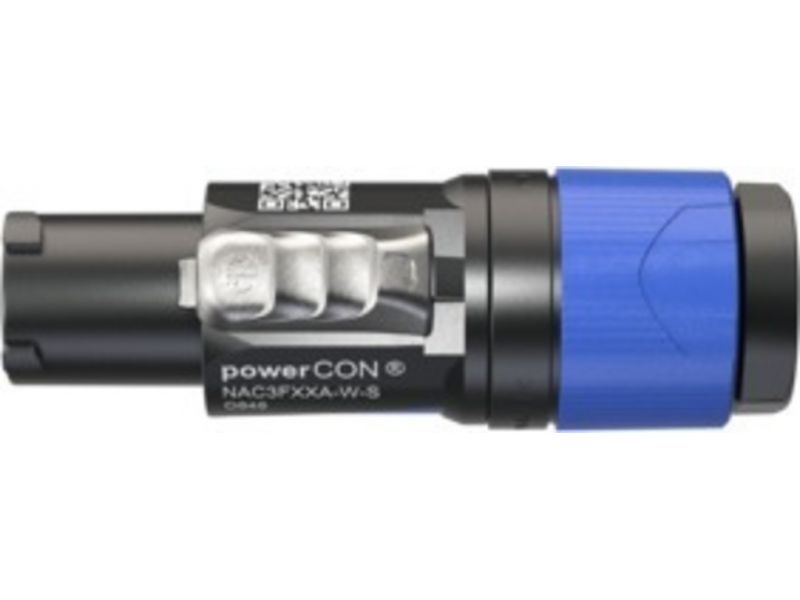

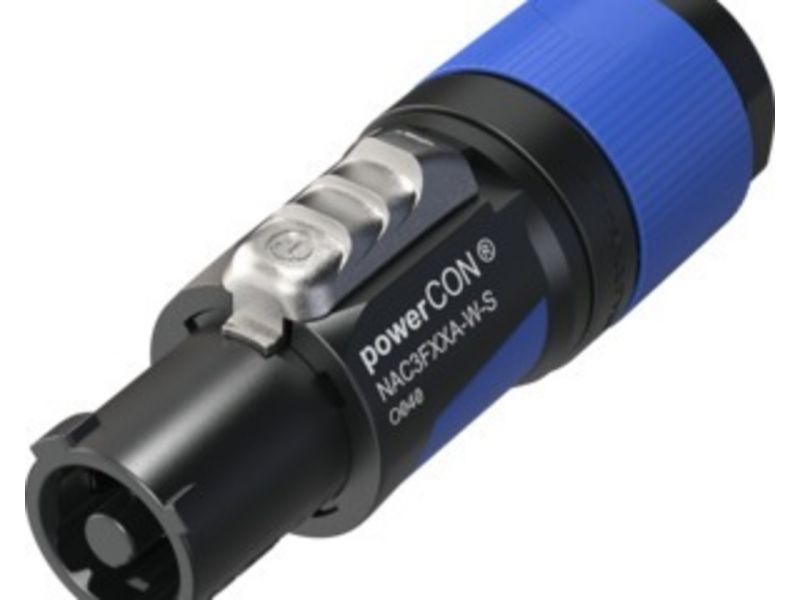

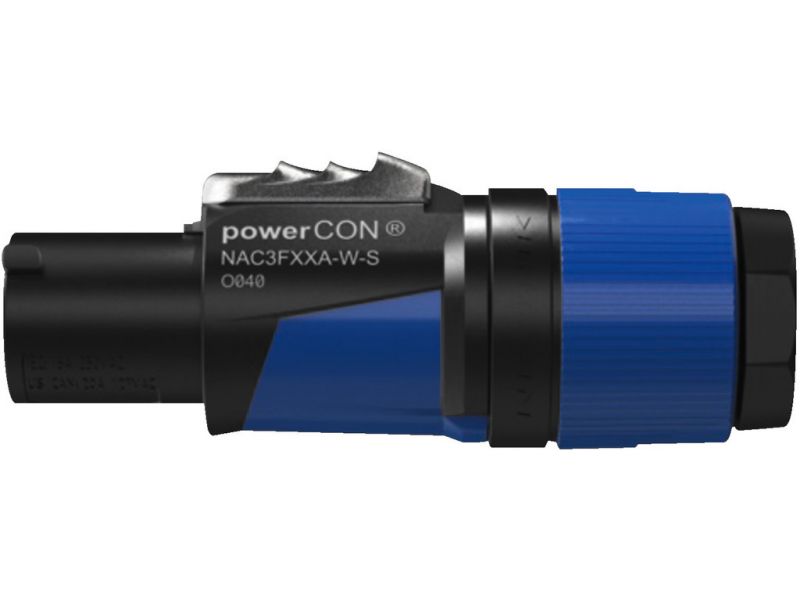

NAC3FXXA-W-S
NEUTRIK POWERCON plug
- Complies with safety requirements of IEC EN 60320-1, VDE-certified
- For mains connection up to ˜ 250 V/16 A
- Versions for mains input
- Connections for ground, phase and neutral conductor
- Robust version with latching device, all-insulated contacts and cable inlet with self-adjusting clamps
- Self-extinguishing according to UL 94V-0
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametre
| Description | plug, input |
| Type | PowerCon, input |
| Množstvo | 1 |
| Features | latching device |
| Farebné kódovanie | black/blue |
| Power rating | ˜ 250 V/16 A |
| Insulating resistance | 10 GΩ |
| Certification | UL, cUL, VDE |
| Pole number | 3 |
| Cable inlet | Ø 6-12 mm |
| Pripojenie | screwed contact |
| Strain relief | yes |
| Materiál | silver-plated copper contacts, plastic |
| Admiss. ambient temp. | -33-+80 °C |
| Diameter | Ø 26.5 mm |
| Dĺžka | 79-82.5 mm |
| Hmotnosť | 35 g |
