MURA210

Kod EAN: 8054301337602

The MURA 2 Serie in-wall Volume Controllers offers a range of volume attenuators for 70V and 100V audio systems and are designed to be recessed in 82x82x48mm wall boxes (supplied). They allow control of the volume with, respectively, 4 positions + off for...

viac

20,00 € brutto

(inkl. 23% DPH)
16,26 € netto

Staň sa partnerom
Kúp teraz


MURA210

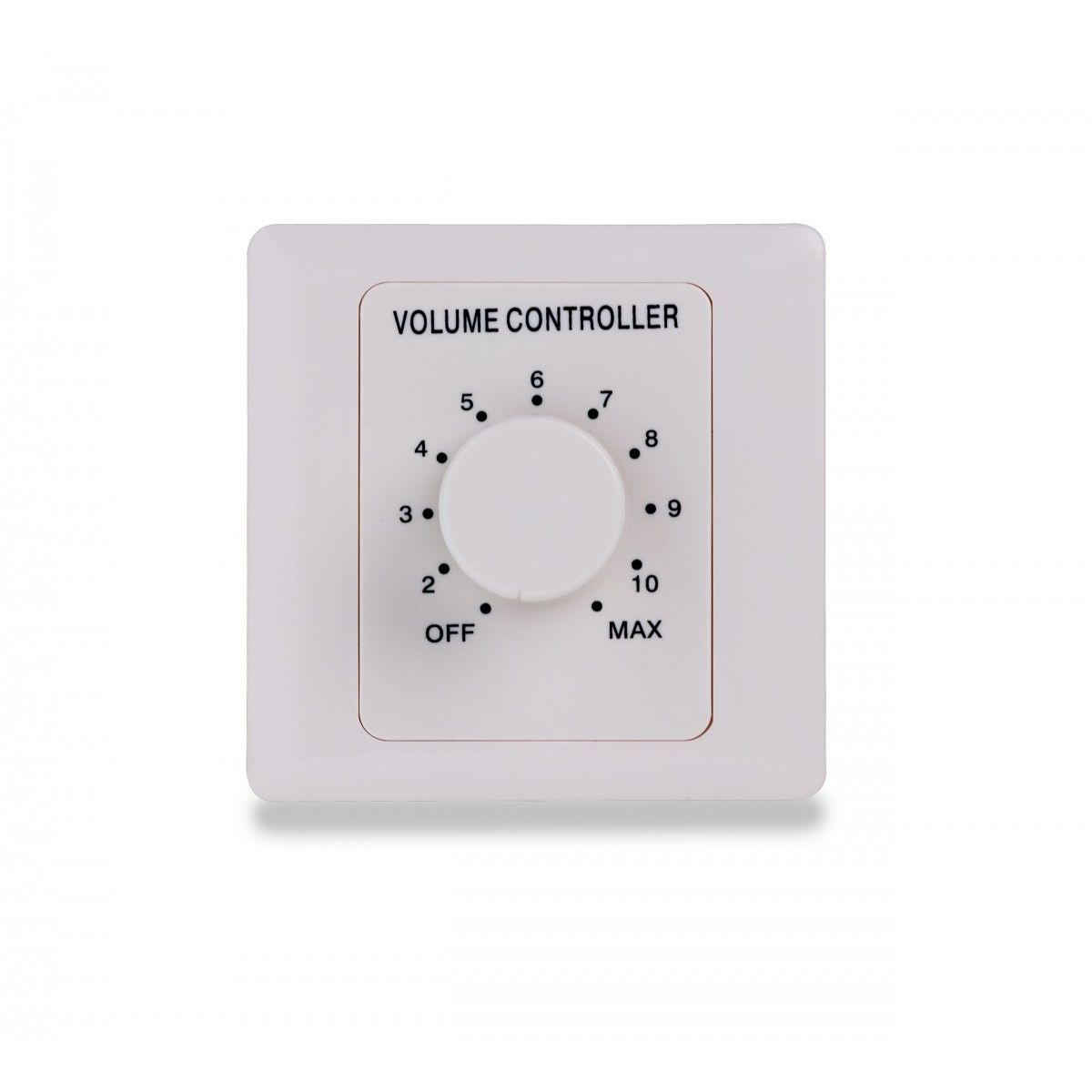

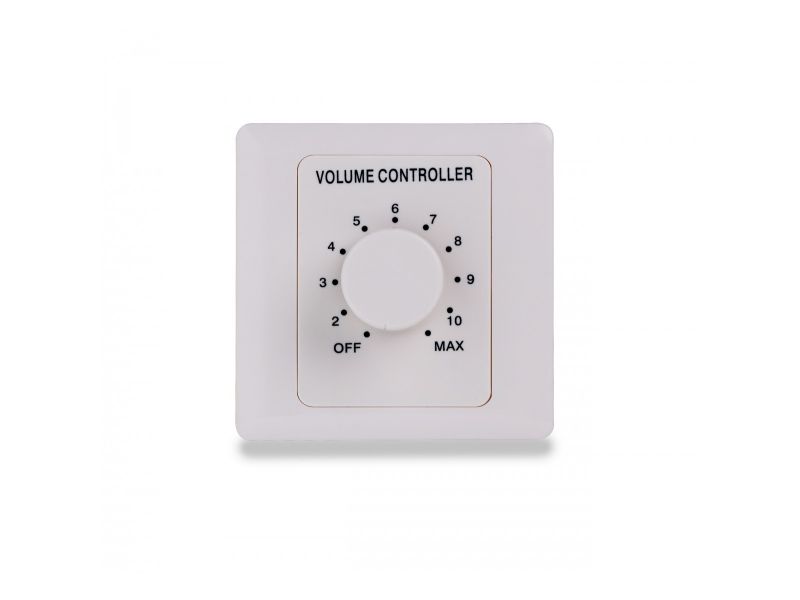

The MURA 2 Serie in-wall Volume Controllers offers a range of volume attenuators for 70V and 100V audio systems and are designed to be recessed in 82x82x48mm wall boxes (supplied). They allow control of the volume with, respectively, 4 positions + off for MURA 205, and 11 positions + off for MURA 210/230/260. The max. nominal powers range from 2.5W to 30W in case of 70V lines; and 5W to 60W for 100V lines. Each position attenuates the overall level from 5dB to 10dB, depending on the model. MURA 210/230/260 provide, in addition to the normal 70-100V audio line, the 70-100V auxiliary line at maximum level (the attenuation does not operate in this case but passes the whole signal to the speaker) and the 24V relay input for switching between normal and auxiliary line in case of alarm. MURA 2 Series volume controllers are supplied with the front cover plate (white) and the in-wall box.

  • 70V and 100V Constant Voltage Audio Line Operation
  • 11 Positions (5dB attenuation) + Off

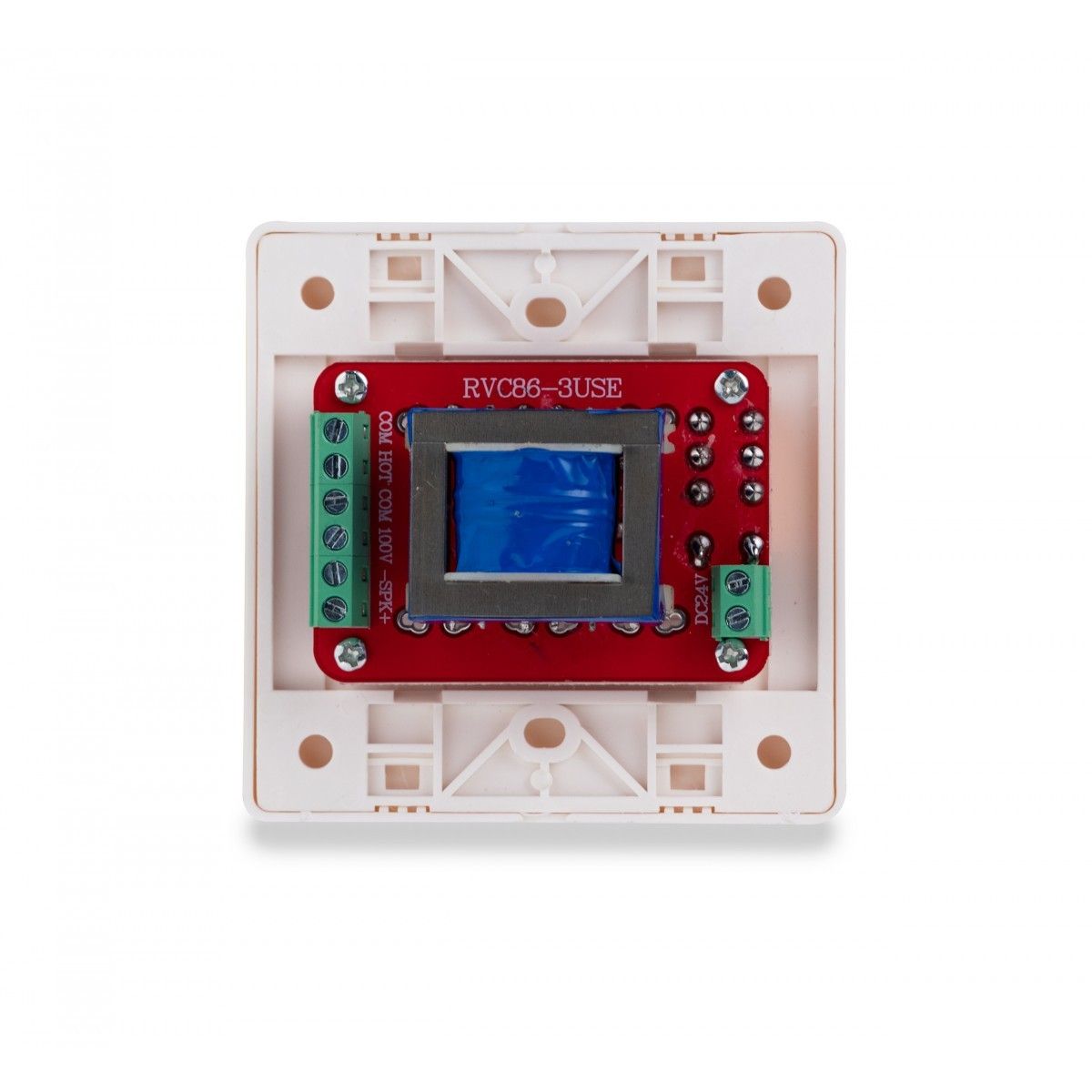

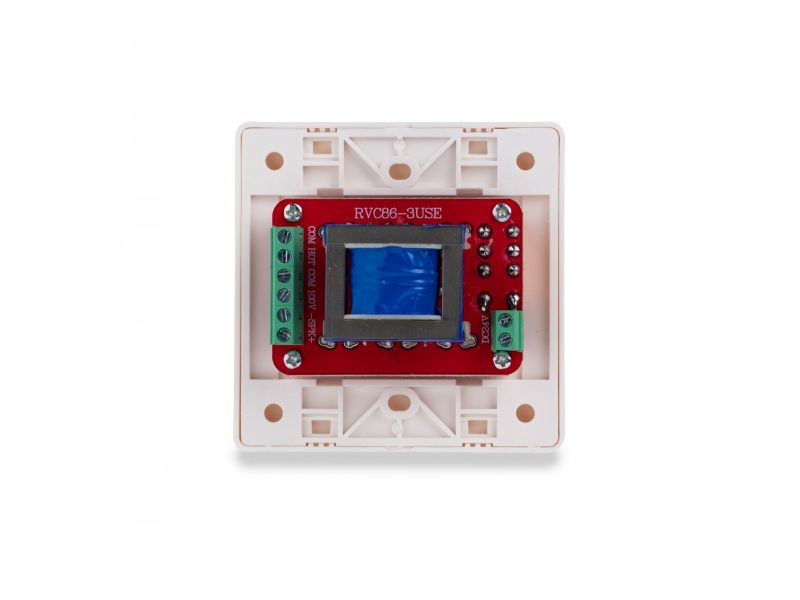

  • Auxiliary 70-100V Line with 24V relay control

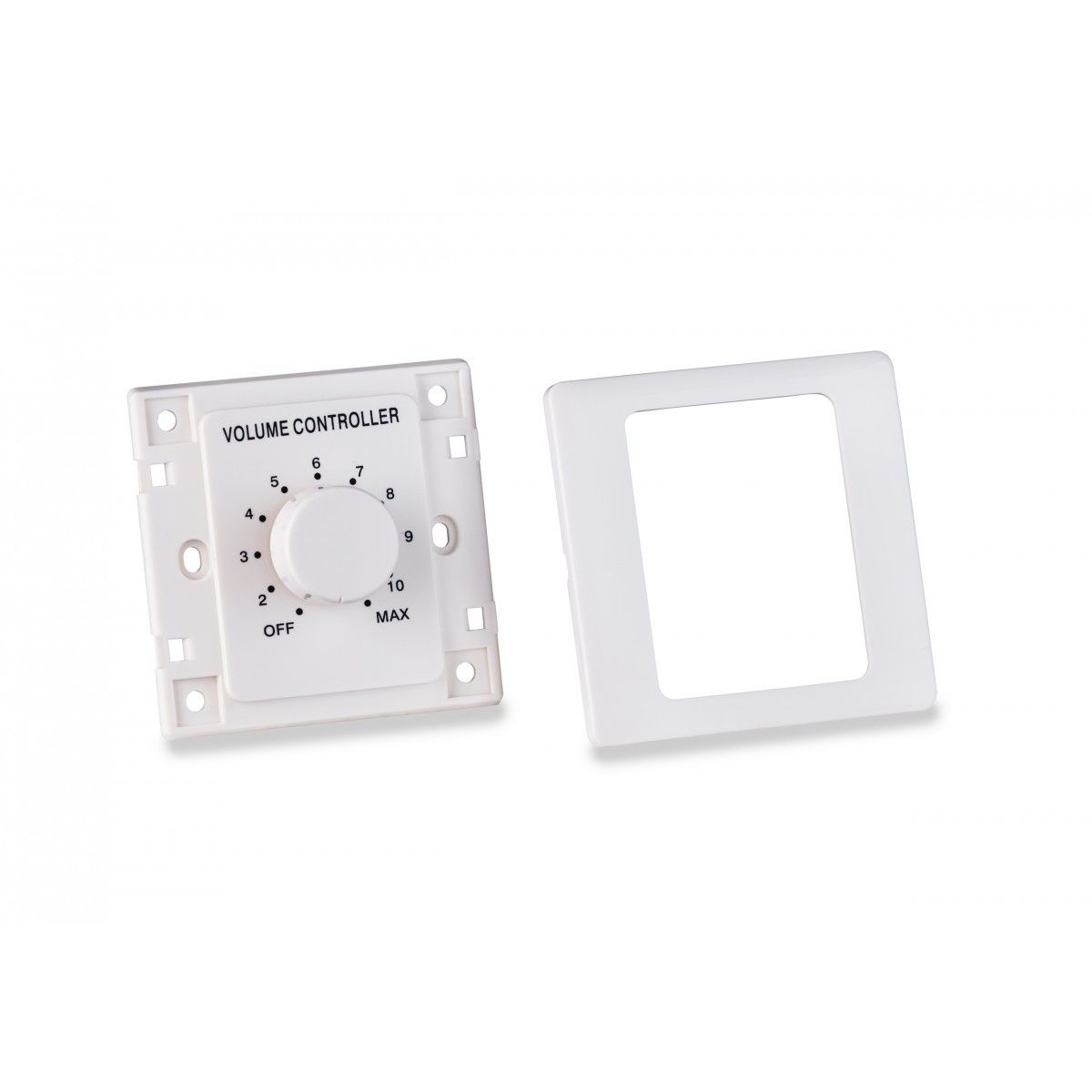

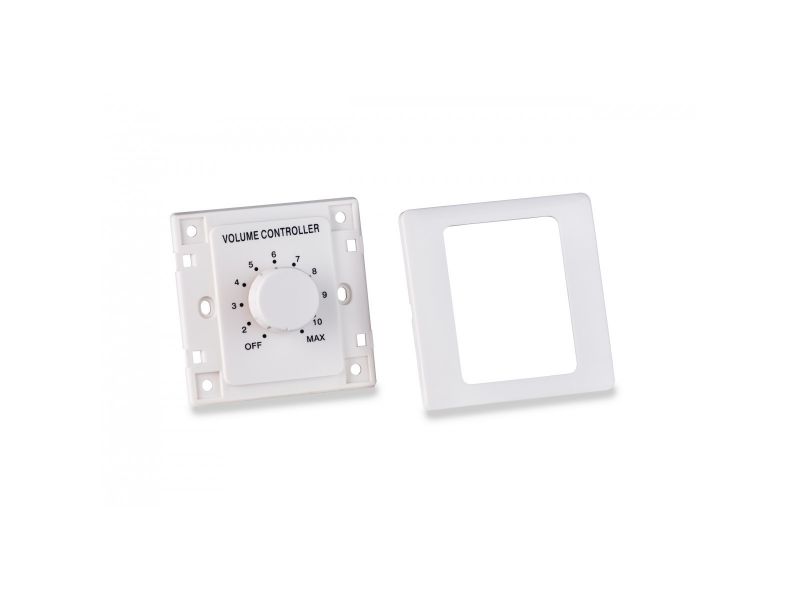

  • Front Cover Included (White)

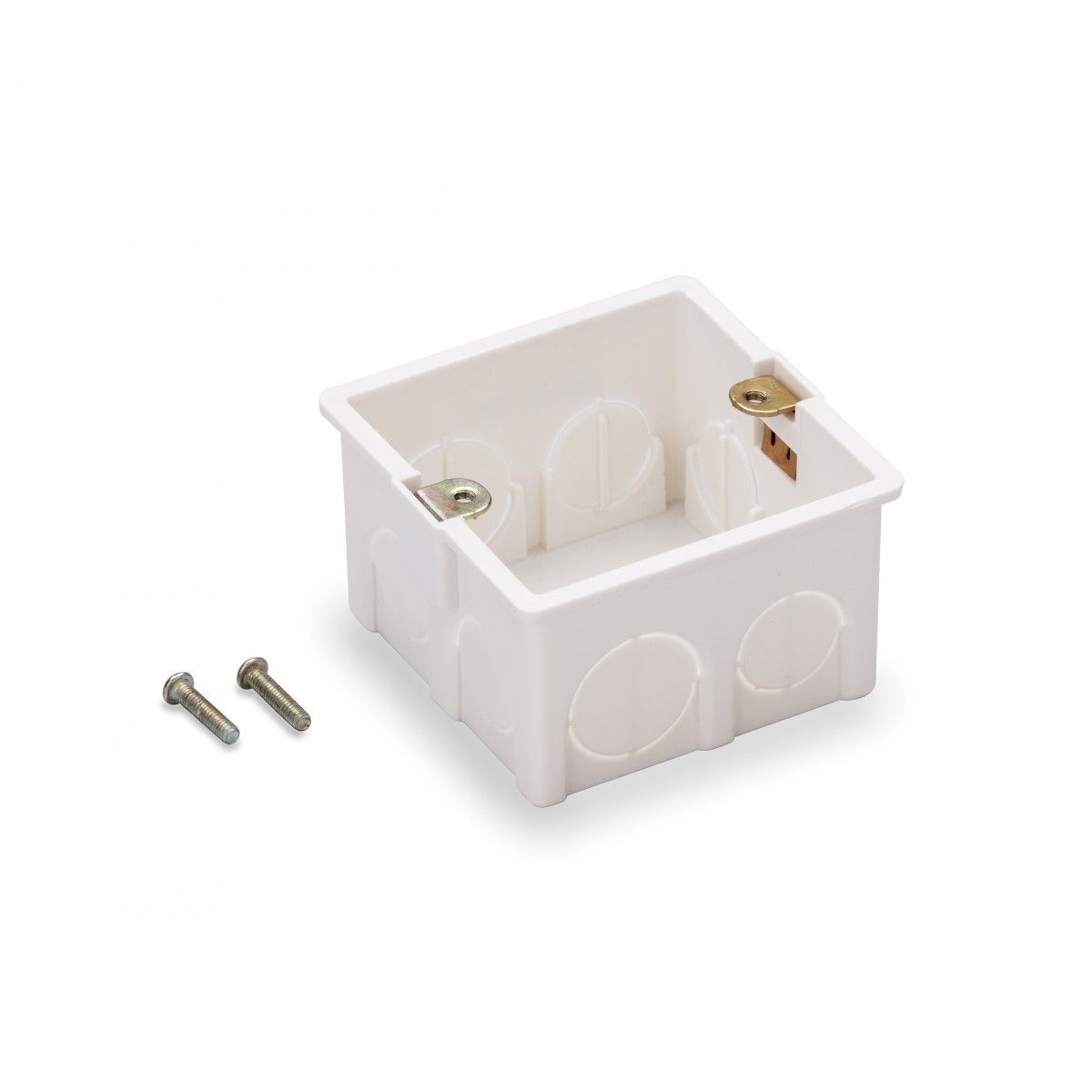

  • In-Wall Mount Box Included

Parametre

Nominal Power @ 100V 10W
Nominal Power @ 70V 5W
Control 11 Positions + Off
Step Attenuation 5dB
Total Attenuation 55dB

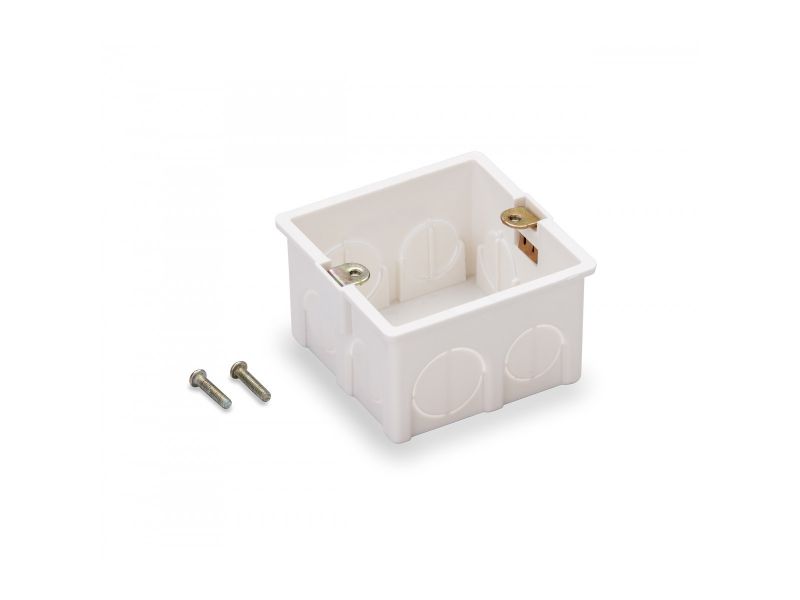

In-Wall Mount Box 80 x 80 x 48 mm (Included) - 3.15 x 3.15 x 1.89 in

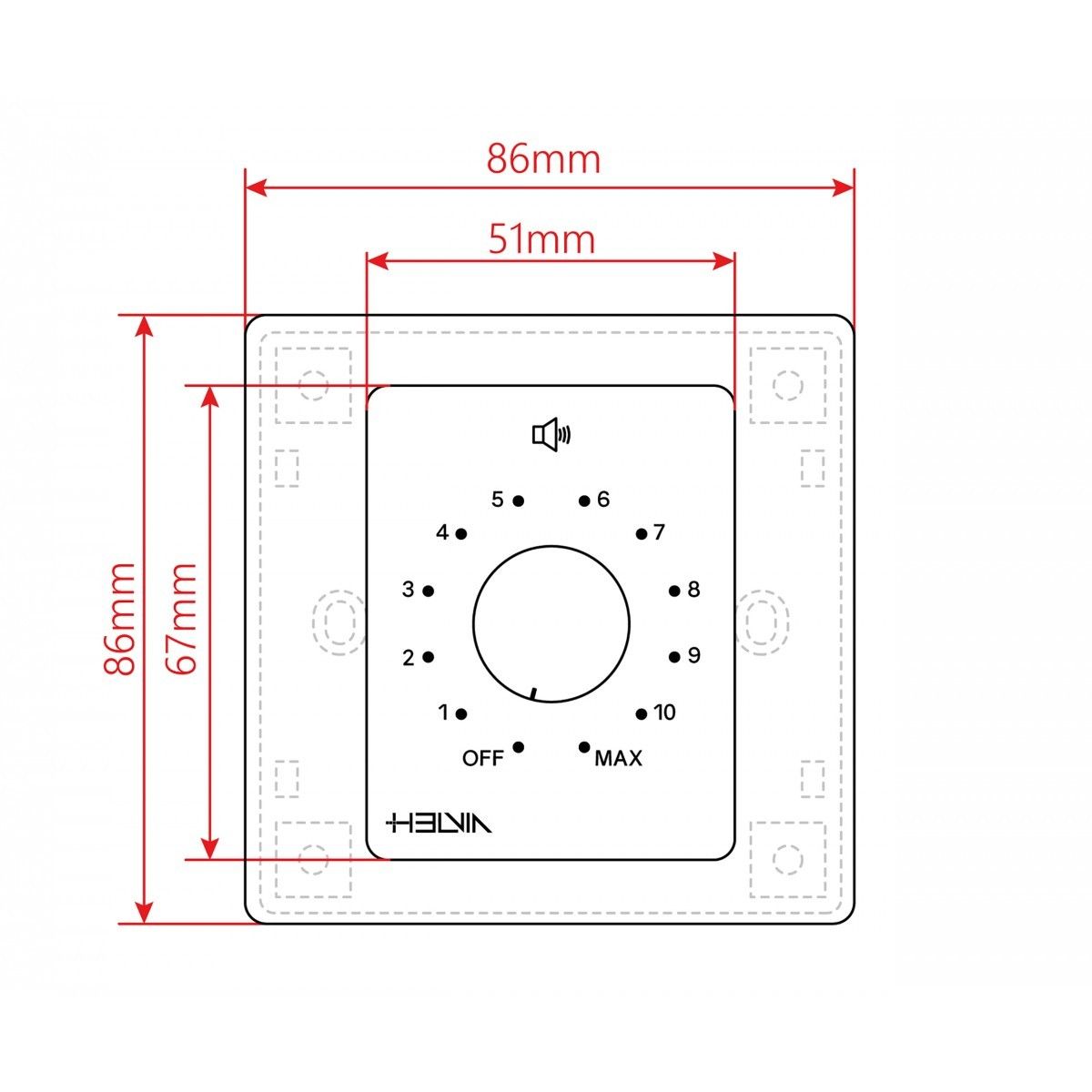

Front Cover White (Included)

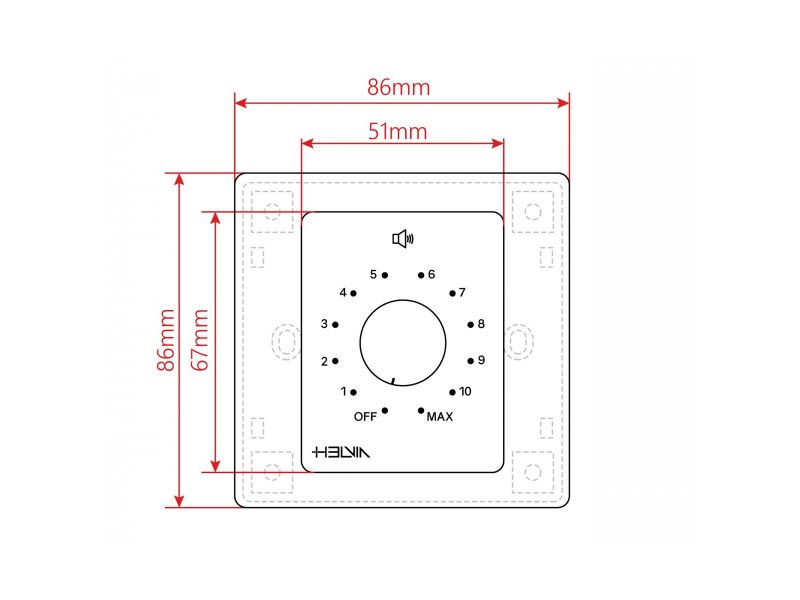

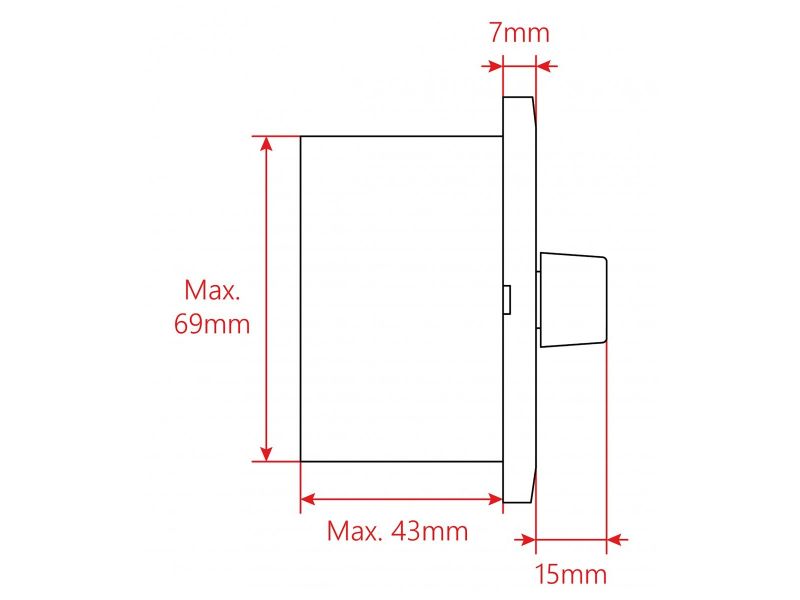

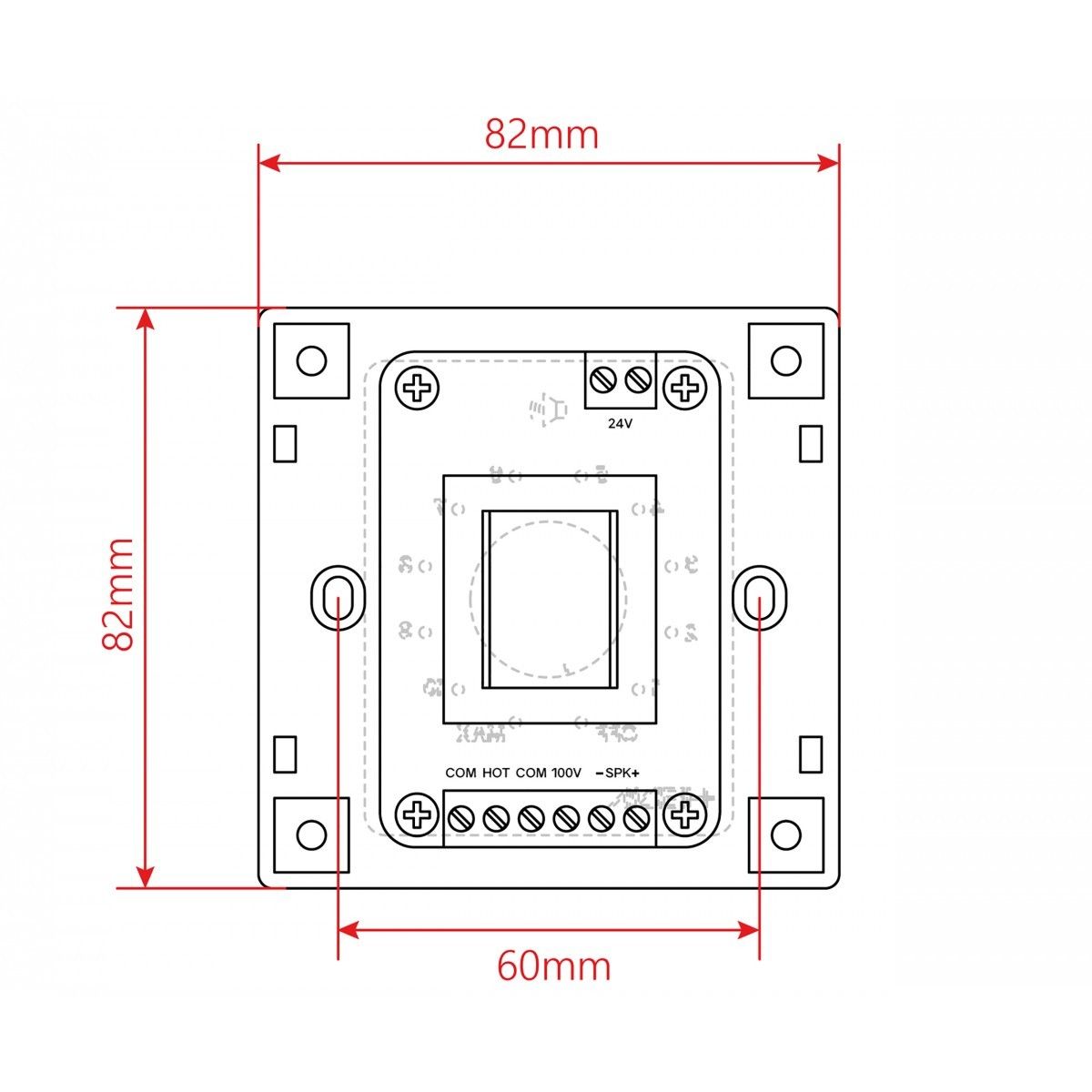

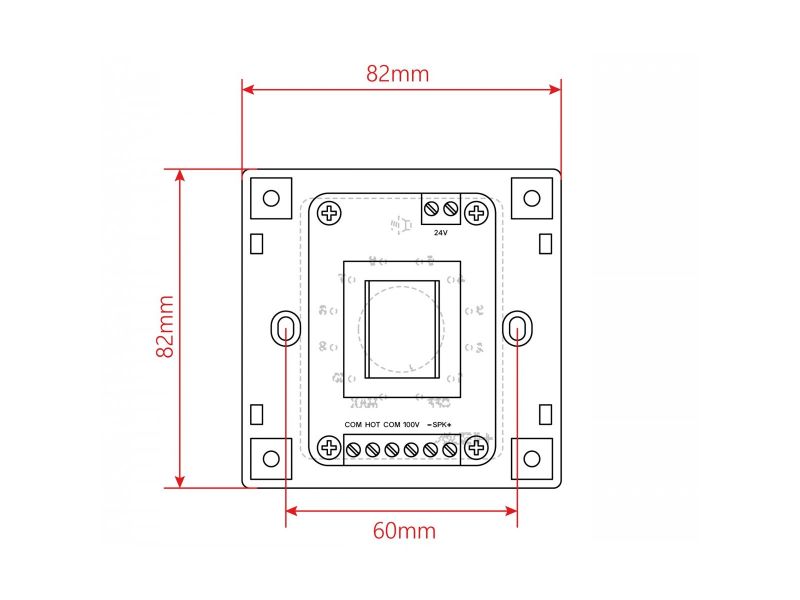

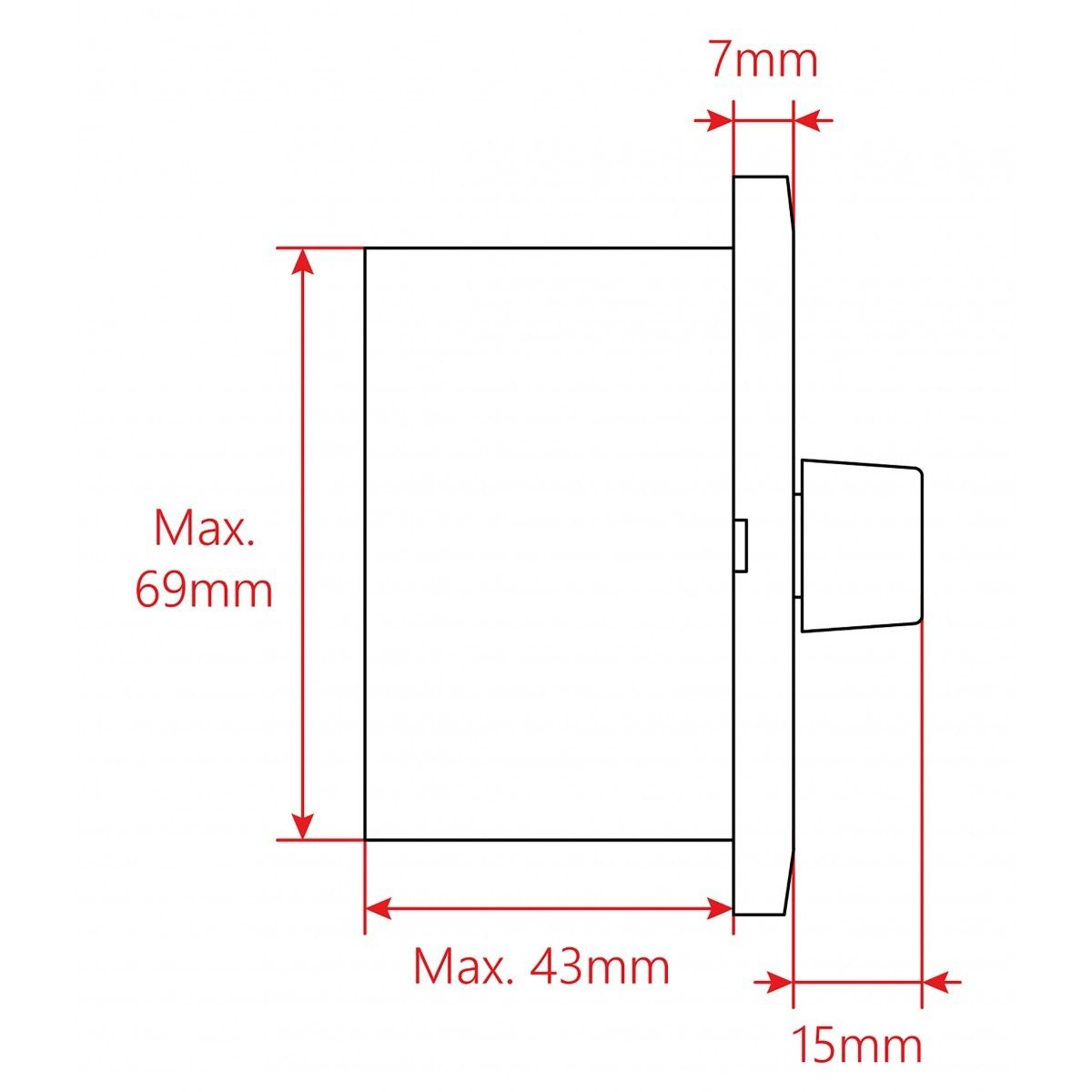

Dimensions 82 x 43 (max.) x 82 mm - 3.23 x 1.7 (max.) x 3.23 in
Net Weight 160 g - 0.35 lbs.
Packing Size 87 x 45 x 87 mm - 3.4 x 1.8 x 3.4 in
Gross Weight 190 g - 0.42 lbs.

Na stiahnutie

Produktová karta MURA210 [Eng-Ita] MURA Series 2 User Manual.pdf
