HMX-MIC
Kod EAN: 8054301338944
The HMX-MIC is the ideal companion for all paging needs related to the use of the HELVIA HMX-44A matrix mixer. It is a gooseneck microphone with a microphone base powered by the HMX-44A central unit via RJ-45 cable. For lengths over 100m, the base can be...
263,99 € brutto
(inkl. 23% DPH)
214,63 € netto

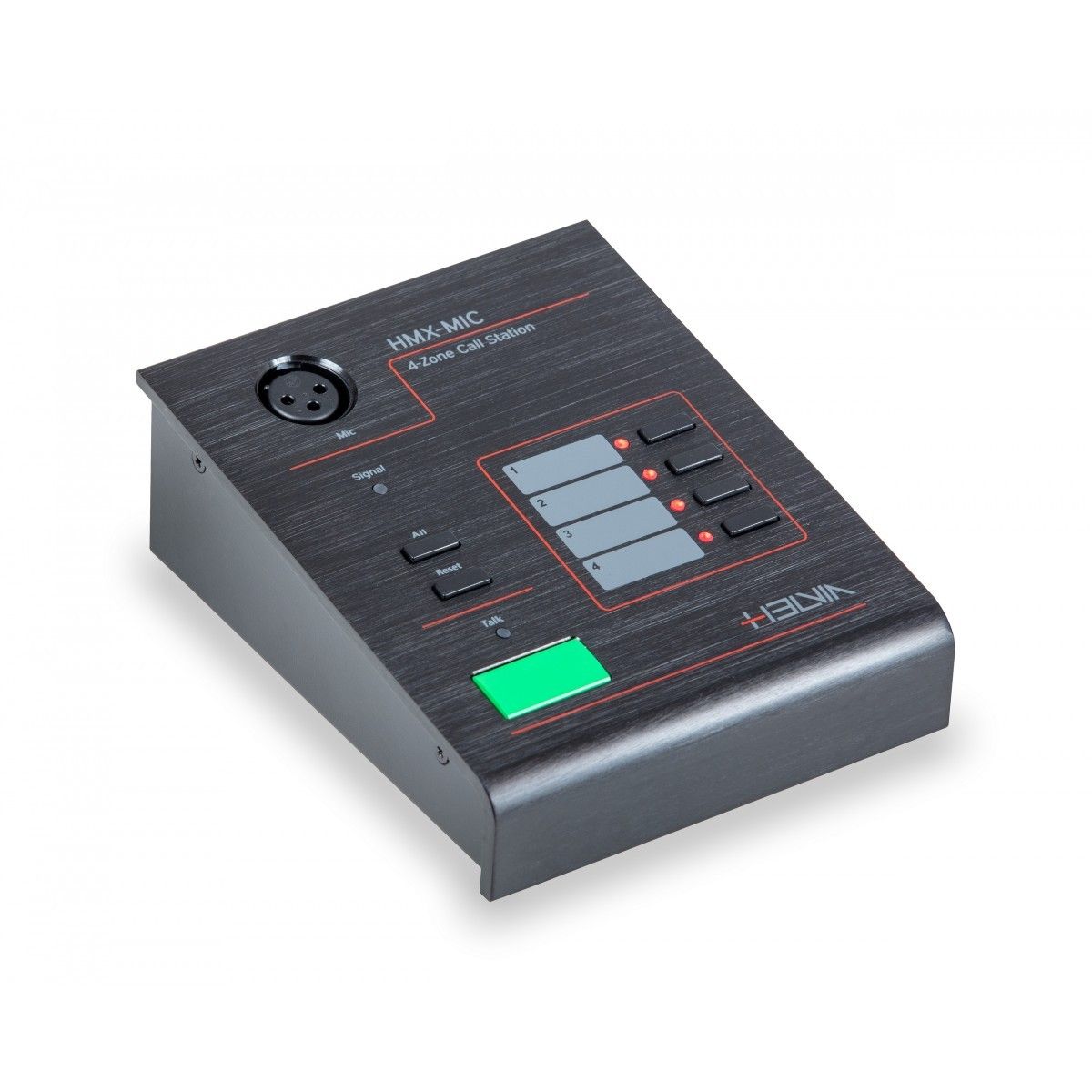

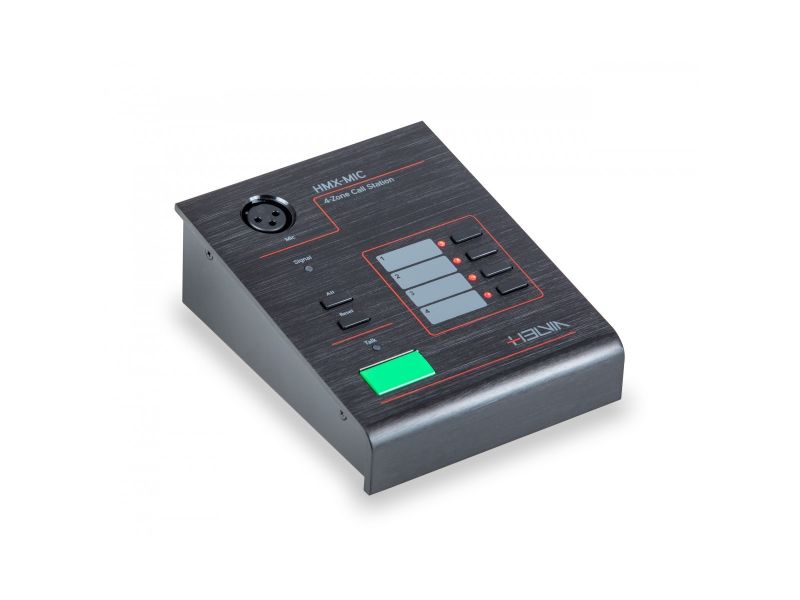

HMX-MIC

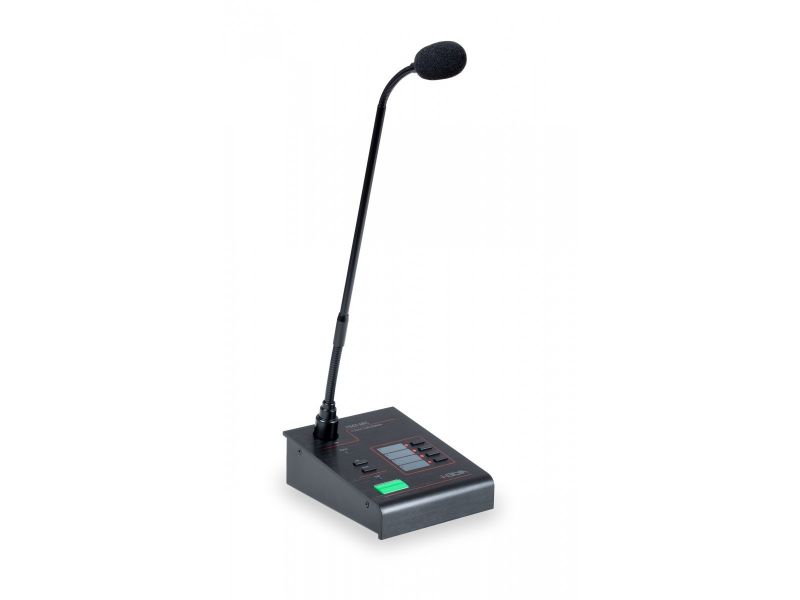

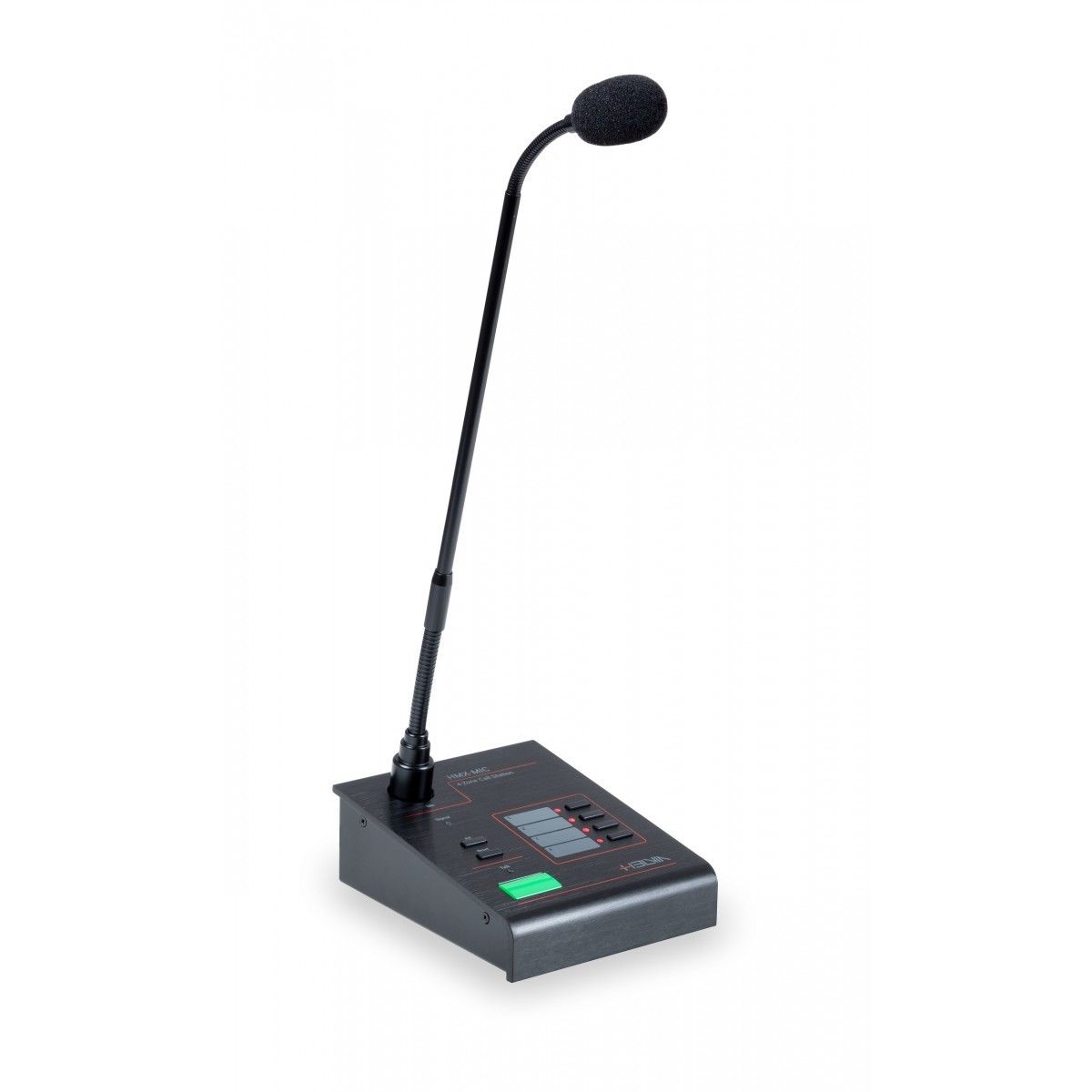

The HMX-MIC is the ideal companion for all paging needs related to the use of the HELVIA HMX-44A matrix mixer. It is a gooseneck microphone with a microphone base powered by the HMX-44A central unit via RJ-45 cable. For lengths over 100m, the base can be connected to an external power supply (included). The control panel allows selection of each of the 4 zones or all 4 simultaneously. The Chime function is programmable, and an additional stereo mini-jack AUX input is available. All levels (microphone, chime and AUX input) are adjustable.
- Gooseneck microphone with level adjustment
- Independent call control on each zone
- ALL function for announcements on all zones
- Programmable chime with level adjustment
- Stereo mini-jack AUX input with level adjustment
- RJ-45 connection with power supply
- External power supply for distances over 100m
Parametre
| Power Supply | 24Vdc, 500mA from RJ45 or power adaptor (included) |
| Max. connection length | 100m (CAT5 cable) or 1km with 24Vdc adaptor (included) |
| Capsule | Back electret condenser |
| Polar Pattern | Cardioid |
| Controls | Aux/Mic/Chime levels, chime DIP switches, zone/page buttons |

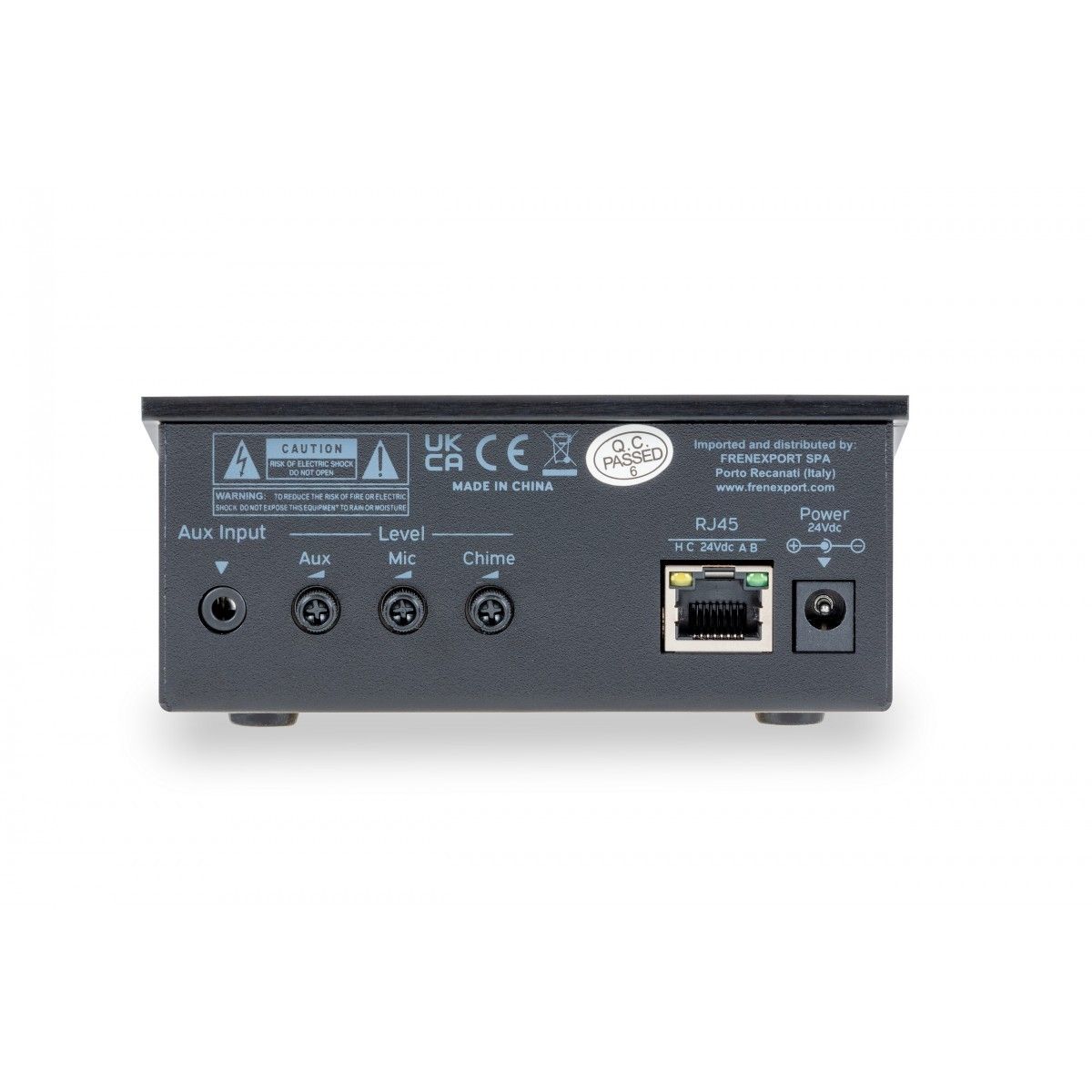

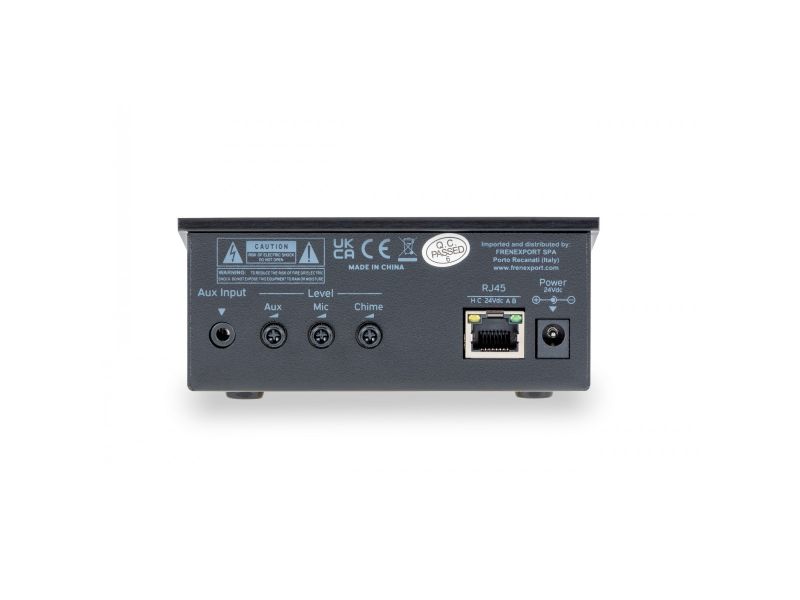

| Connectors | RJ45 to amplifier, 24Vdc power jack, Aux input |
| Frequency Response (-3dB) | 150Hz - 22kHz |
| Input Level Mic | -46dBV, Aux: 50k Ohms |
| Input Impedance Mic | 600 Ohms, Aux: -10dBV |
| Output Level | 10dBV |
| Output Impedance | balanced 600 Ohms |
| S/N Ratio | -60dB (all channels selected) |
| Rozhranie | RS-485 control |
| Zone assign | 4 zones or all selectable |
| Product Size (WxDxH) | 115 x 143 x 460/53 (with Mic/without Mic) mm (4.52 x 5.63 x 18.11/2.09 in) |
| Product Weight | 600 g. (1.32 lbs.) |
| Packing Size (WxDxH) | 430 x 235 x 65 mm (16.93 x 9.25 x 2.56 in) |
| Pakcing Weight | 1.06 kg (2.34 lbs.) |
