HMX-44PLAY
Kod EAN: 8054301338982
HELVIA has thought to respond to the main needs of those involved in small-to-medium audio installations offering versatility and compactness in an integrated solution such as the HMX-44. This is a little gem that integrates a matrix with a 4-input, 4-out...
435,00 € brutto
(inkl. 23% DPH)
353,66 € netto

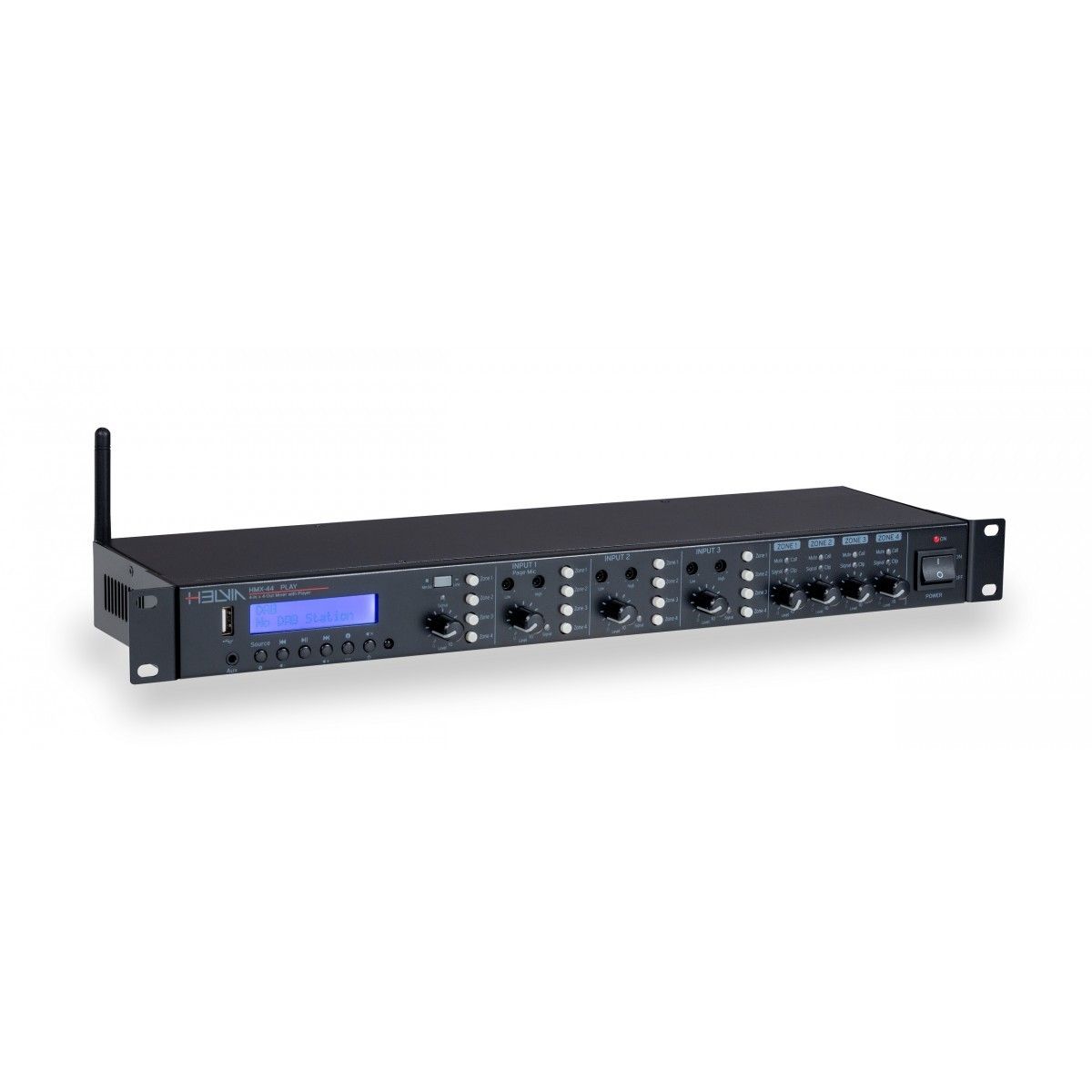

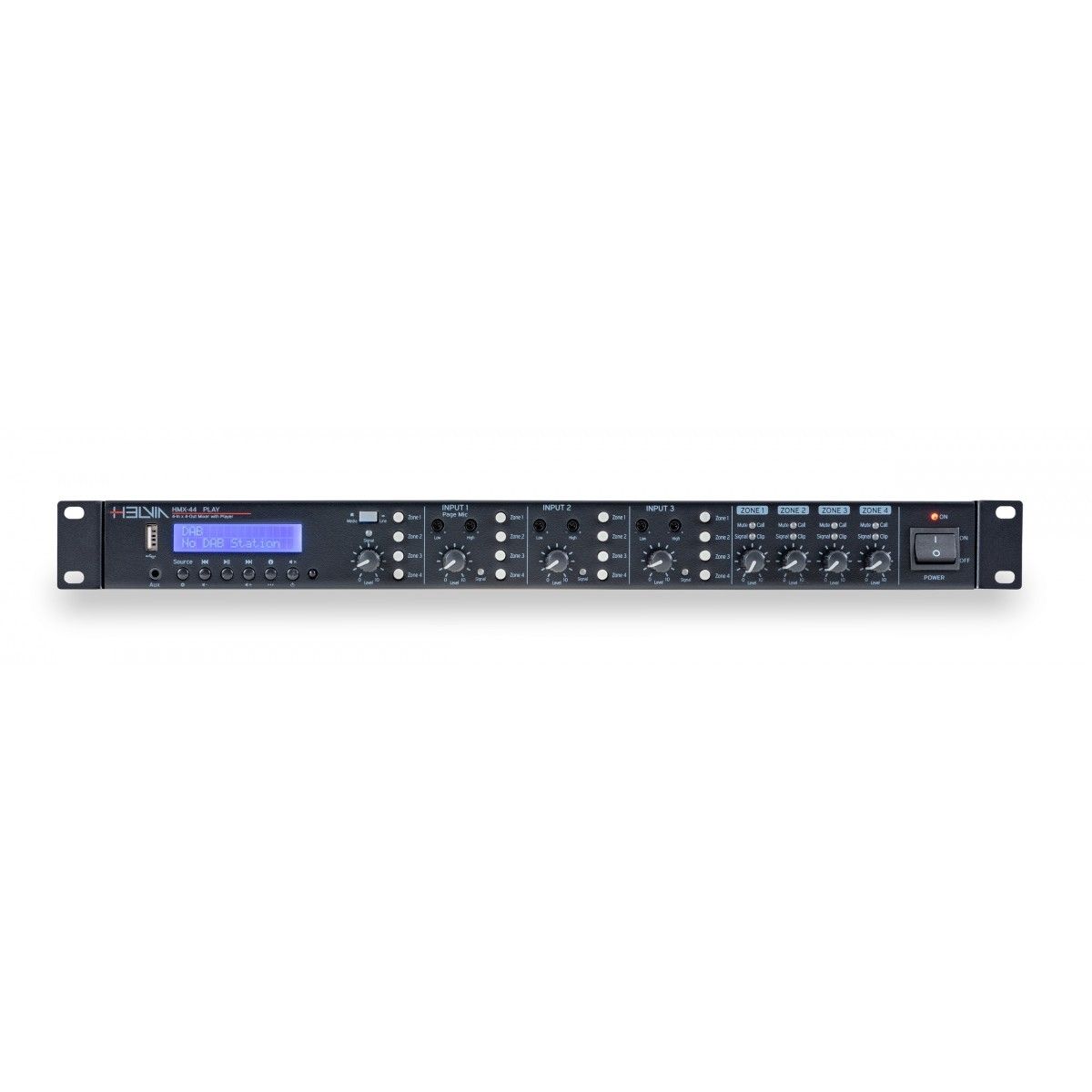

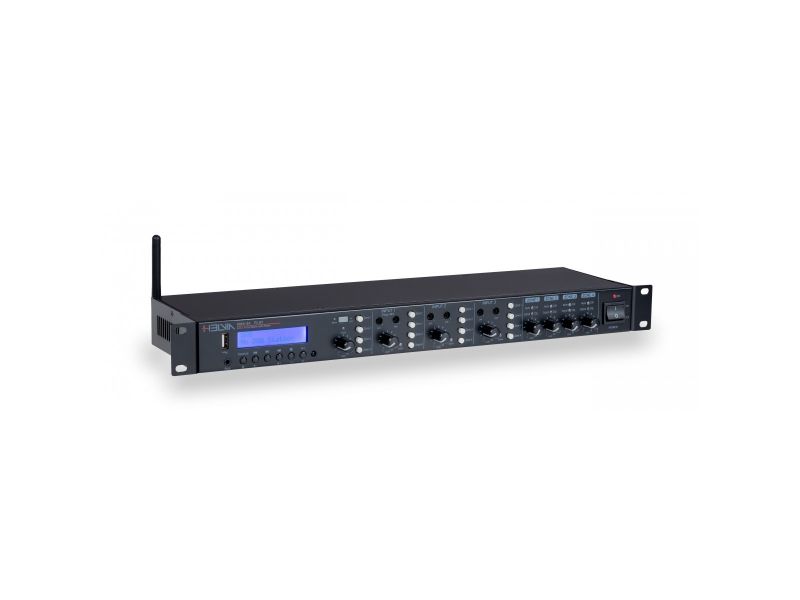

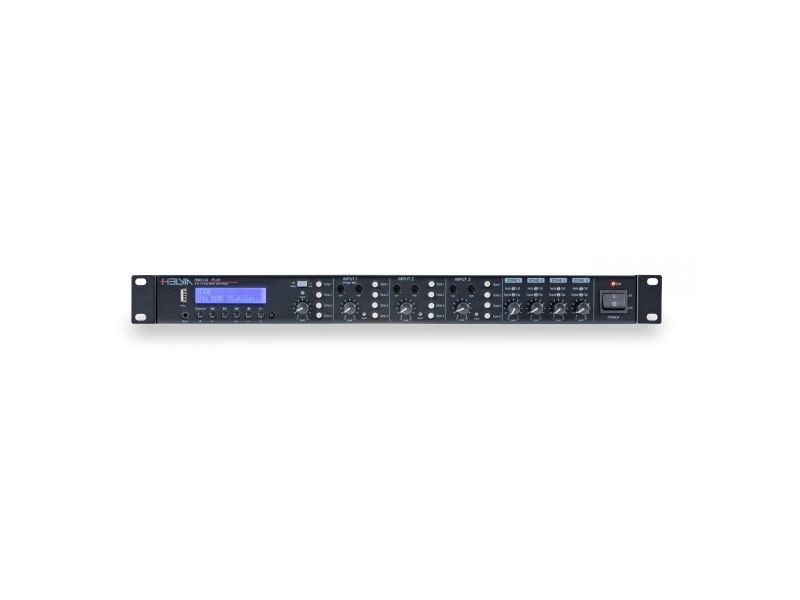

HMX-44PLAY
HELVIA has thought to respond to the main needs of those involved in small-to-medium audio installations offering versatility and compactness in an integrated solution such as the HMX-44. This is a little gem that integrates a matrix with a 4-input, 4-output mixer and a multimedia player. The mixer section provides 3 combo Mic-Line inputs with 48V Phantom, a front mini-jack stereo Line input combined with the multimedia player with DAB+, FM, USB, BT. Each input has independent level adjustment, and the 3 combo Mic/Line inputs also feature high and low tone adjustment. All 4 inputs are assigned independently to the 4 zones, and each zone has output level control. The HMX-44 provides connection with HMX-MIC microphone base station via RJ-45 connection. The station is equipped with alert chimes and allows the 4 zones to be selected independently.
- 4-In / 4-Out Matrix
- 4-channel mixer with 3 combo Mic/Line inputs and 1 Mini-jack Stereo Front input
- RCA Line Outputs

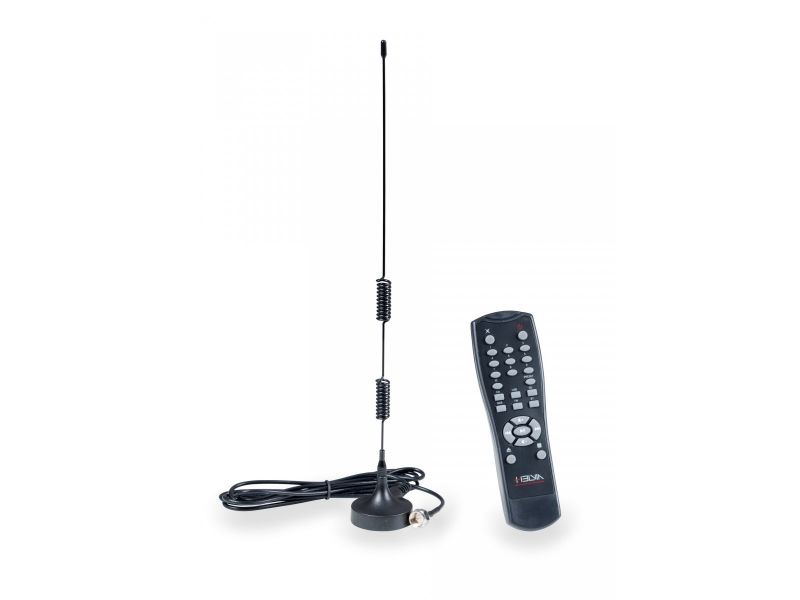

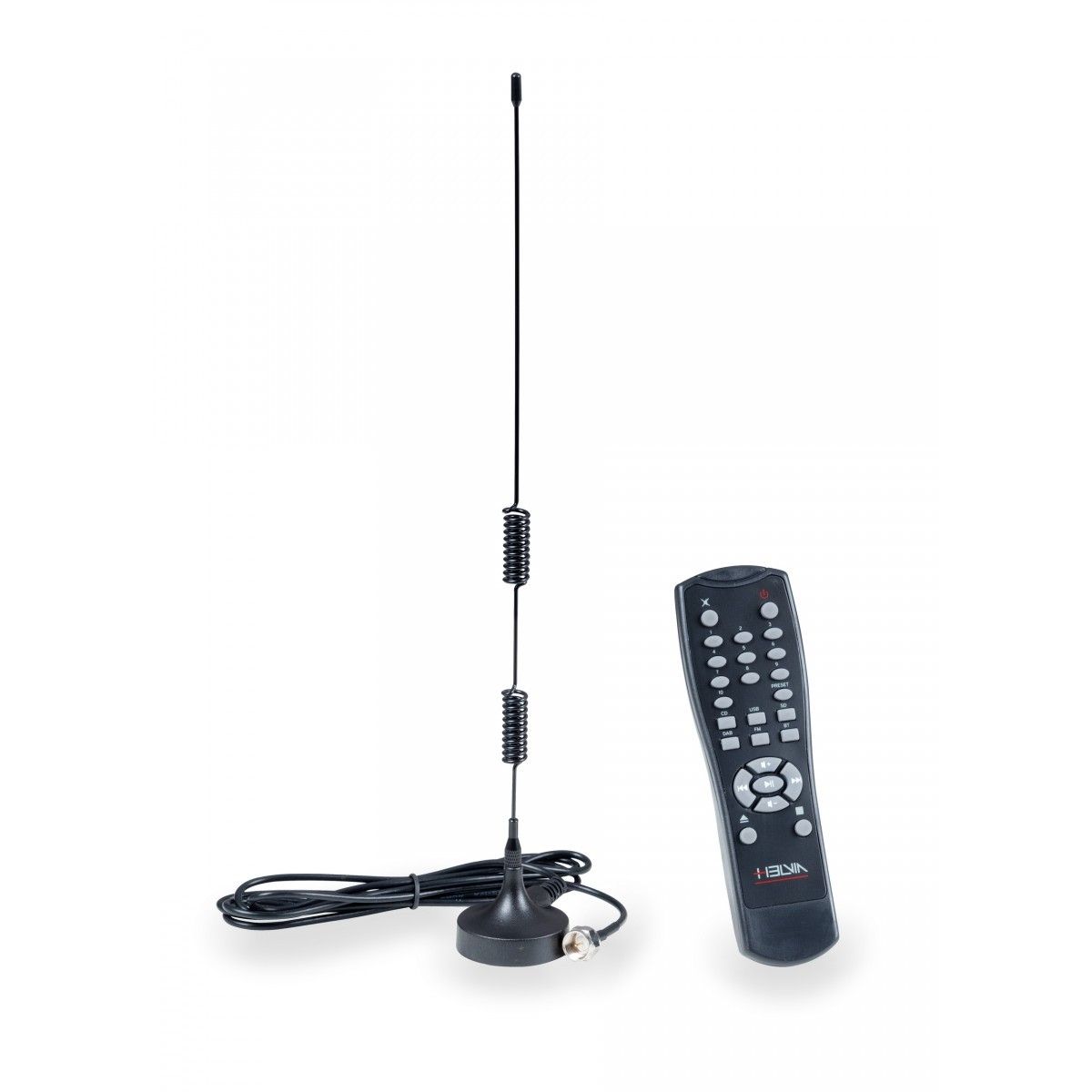

- Multimedia Player with DAB+, FM, USB, BT and Remote Control
- 48V Phantom Power for condenser microphones and Priority on Mic 1
- Small size in 1 rack unit
- Mute function in case of emergency

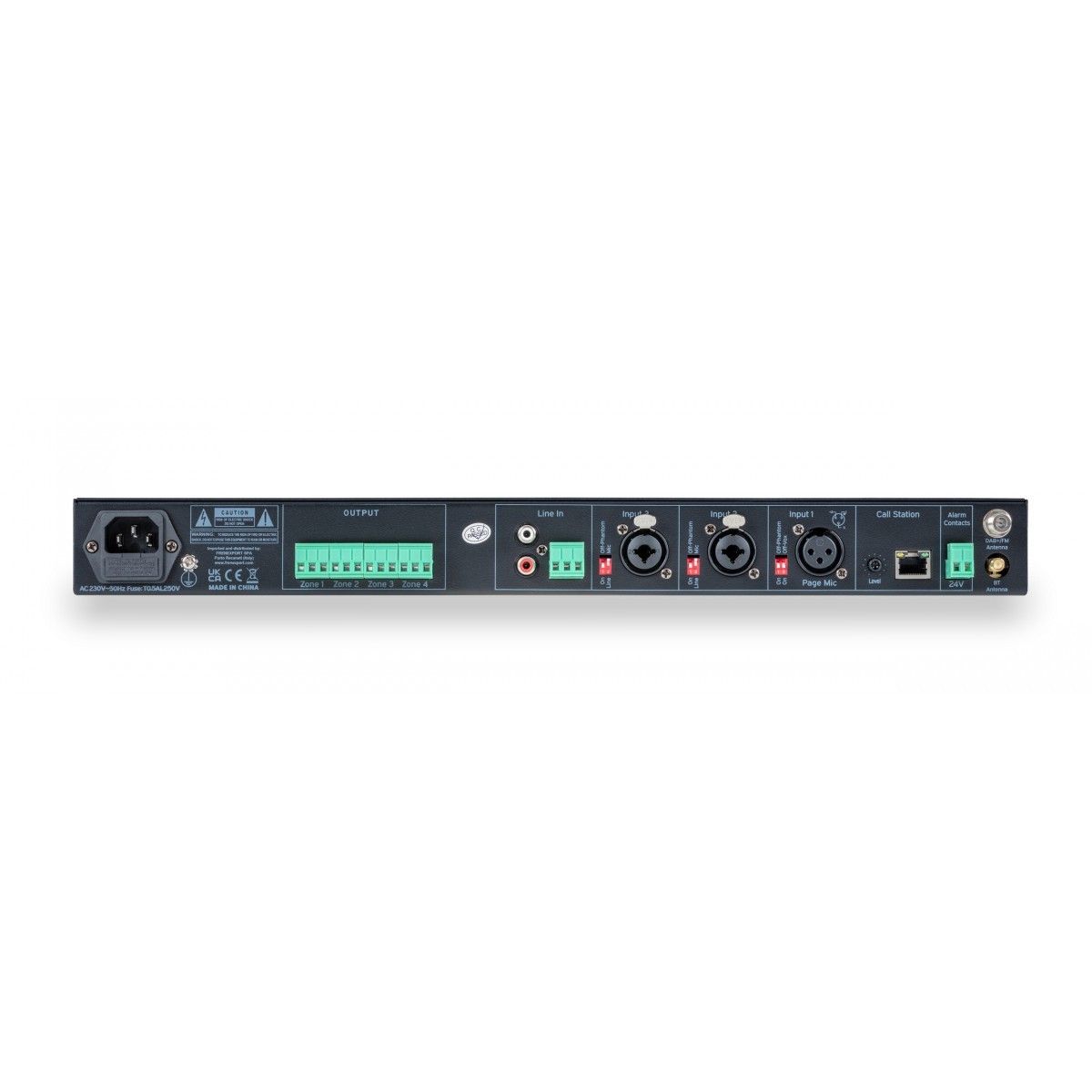

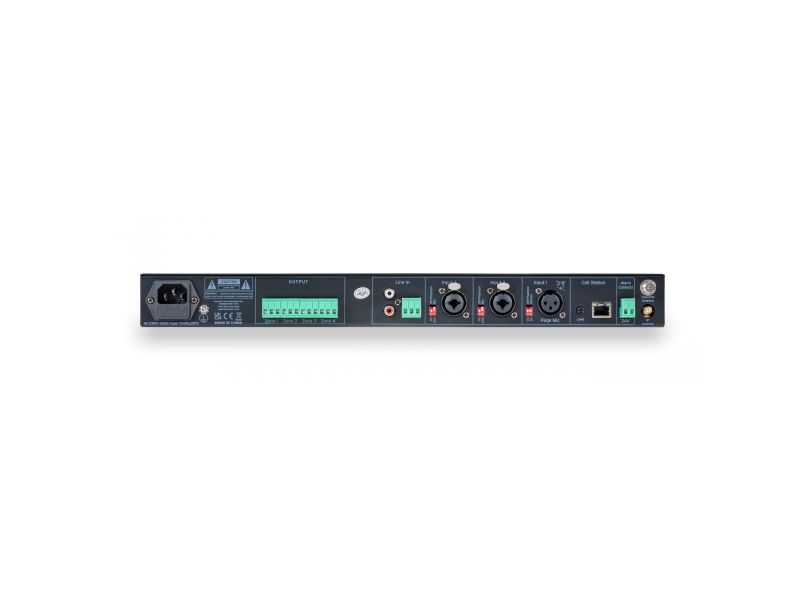

Parametre
| Frequency response | 100Hz - 24kHz |
| THD | <0.76% @ 1kHz |
| Input impedance | 1k Ohms (mic/line) |
| Input sensitivity | -11dB (line), -46dB (mic) |
| SNR | 84dB (line), 82dB (mic) |
| Vstupy | 1Mic (XLR), 2 x mic/line (XLR/jack), 1 Line (RCA/Euro-block terminal) |
| Zone Line Outputs | 4 x RCA (mono) outs |
| Multimedia Player | DAB+/FM/USB/BT |
| Fantómové napájanie | +48V switchable on each XLR Input |
| Mute | +24V Relay Contacts |
| Bluetooth Version | 2.0 |
| Call Station Port | RJ45 Port (with power) |
| Napájanie | 170-264Vac, 50Hz (IEC) |
| Fuse | T1A/250V |
| Unit Dimensions | 435 x 122 x 44mm (17.1 x 4.8 x 1.7 in) |
| Packing Dimensions | 550 x 227 x 69 mm (21.6 x 8.9 x 2.7 in) |
| Hmotnosť | 1.8 kg – 4 lbs. |
| Packing Weight | 2,74 kg – 6 lbs. |
