EVOCAHP150W
Kod EAN: 8051706393868
There are many fixed outdoor applications that require high-power / wide coverage sound projectors. In these cases, traditional horn speakers do not offer the required audio spectrum, for example, for background music or other high-quality audio contents...
525,00 € brutto
(inkl. 23% DPH)
426,83 € netto
EVOCAHP150W

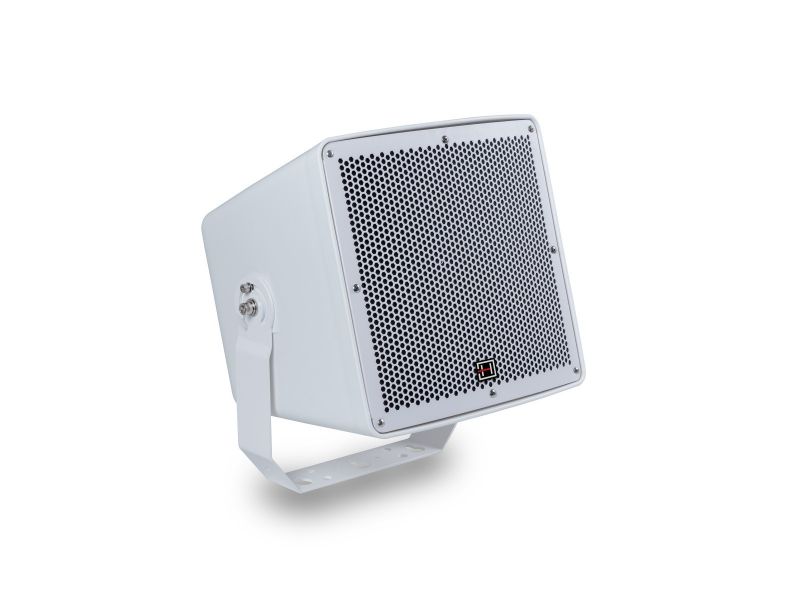

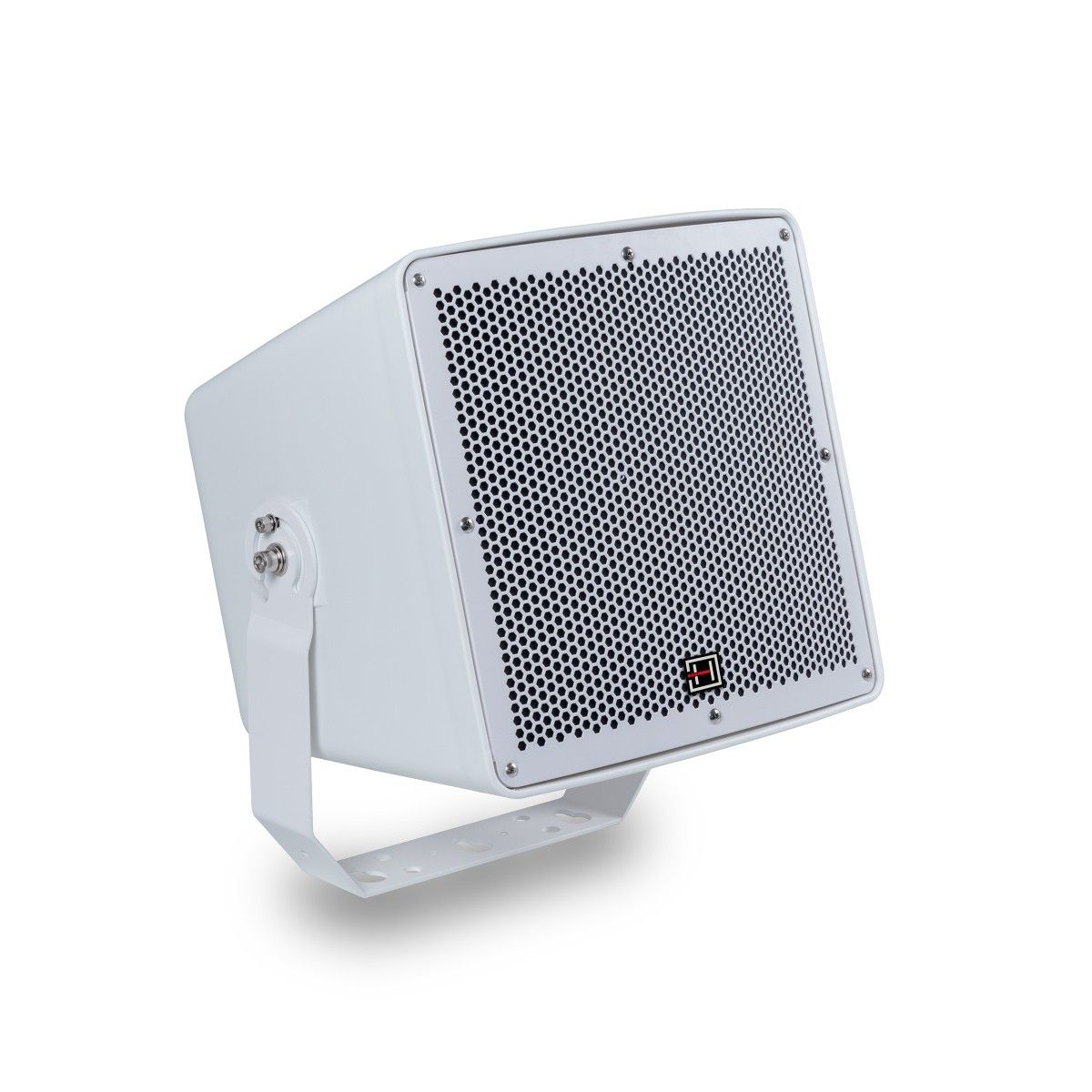

There are many fixed outdoor applications that require high-power / wide coverage sound projectors. In these cases, traditional horn speakers do not offer the required audio spectrum, for example, for background music or other high-quality audio contents in big spaces like parks, production facilities, sports fields, shopping center parking lots, etc. Since HELVIA's EVOCA HP series projectors are designed as 2-way coaxial speakers with vented ports and a fixed 90° x 60° (H x V) waveguide, they are essentially high-power speakers but built to offer an IP65 rating and last overtime, even when exposed to the elements. The series consists of two models: one with 150W RMS power output and an 8" woofer and a 1" HF driver (EVOCA HP150) and the other with 300W RMS power output and a 12" woofer and a 1.7" HF driver (EVOCA HP300). Sensitivity (1W@1m) ranges from 96dB to 99dB, resulting in sound pressure levels typically found in portable and/or rental audio systems. Although these projectors are equipped with internal 70V and 100V line transformers with 5 selectable power levels, they can easily be driven by low-impedance (8ohm) power amplifiers. The IP65 rating is ensured both by the grille and mounting bracket, which are treated against humidity and rust, and by the high-quality UV-resistant plastic materials used for the external structure and internal components. All this with a view to maximum durability over time even if constantly exposed to the elements.
- Long-range sound projection
- Ideal for extended sound coverage in outdoor spaces
- 8" high-power woofer
- HF horn-loaded driver designed for high sound pressure levels
- 70V/100V transformer with selectable power settings and 8 Ohm output
- IP65 protection for all weather conditions
- Multi-layer protective grille and baffle made of high-quality engineering plastic
- Reliable and long-lasting performance in humid outdoor conditions
Parametre
| RMS Power | 150W |
| Impedance | 8 Ohm |
| Sensitivity (1W@1m) | 96 dB |
| Frequency Response | 70Hz-20kHz |
| Woofer Type | 1×8" (200 mm) / 2" voice coil |
| Tweeter Type | 1×1" (25 mm) / 1" voice coil |
| Dispersion (HxV) | 90°×60° |
| Cabinet Material | Polypropylene |
| Grille Material | Steel with two-layer foam protection |
| Input Connector | 4-Position grid type terminal |

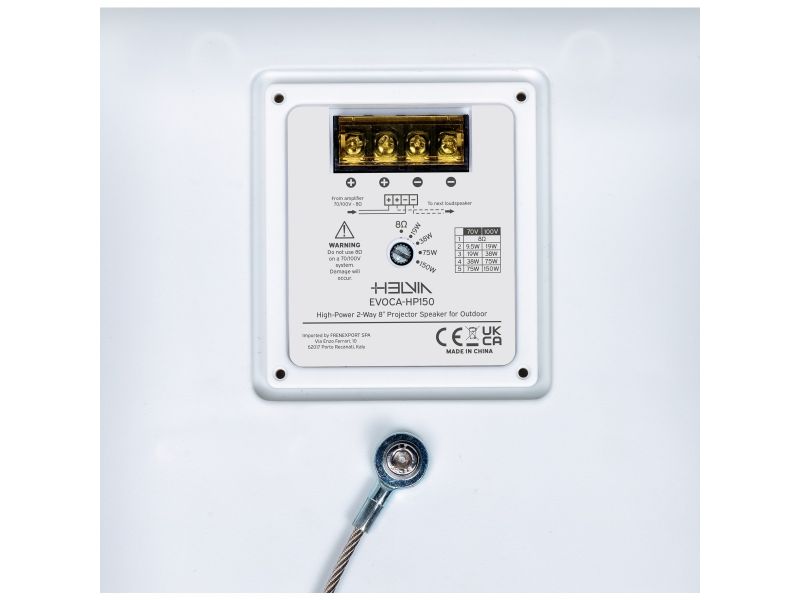

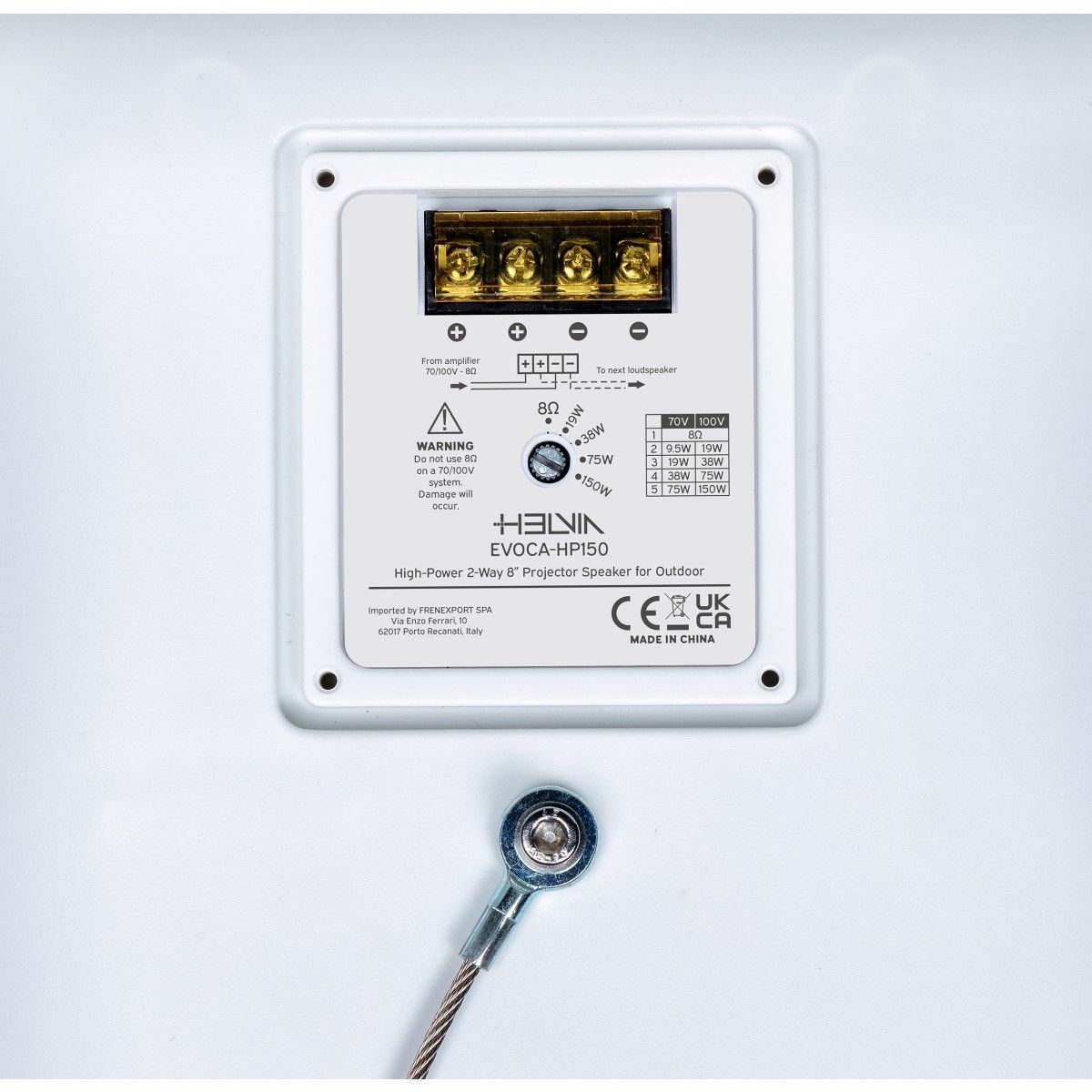

| Transformer (70/100V) | 19W-38W-75W-150W + 8ohm output |
| IP Rate | IP65 |
| Finish | White |
| Projector Dimension (with bracket) | 309 x 317 x 352 mm – 12.16 x 12.48 x 13.86 inches |
| Hmotnosť | 11 kgs – 24.25 lbs. |
| Packing Size | 40 x 40 x 41 cm |
| Packing Weight | 13,2 kgs – 29.1 lbs. |
