EVOCA20P

Kod EAN: 8054301337541

HELVIA EVOCA 20P is high efficiency sound projectors designed to provide good speech intelligibility and background music in a wide variation of applications, and are perfect suited to be used in large 100V broadcast systems such as shopping malls, statio...

viac

57,99 € brutto

(inkl. 23% DPH)
47,15 € netto

Staň sa partnerom
Kúp teraz


EVOCA20P

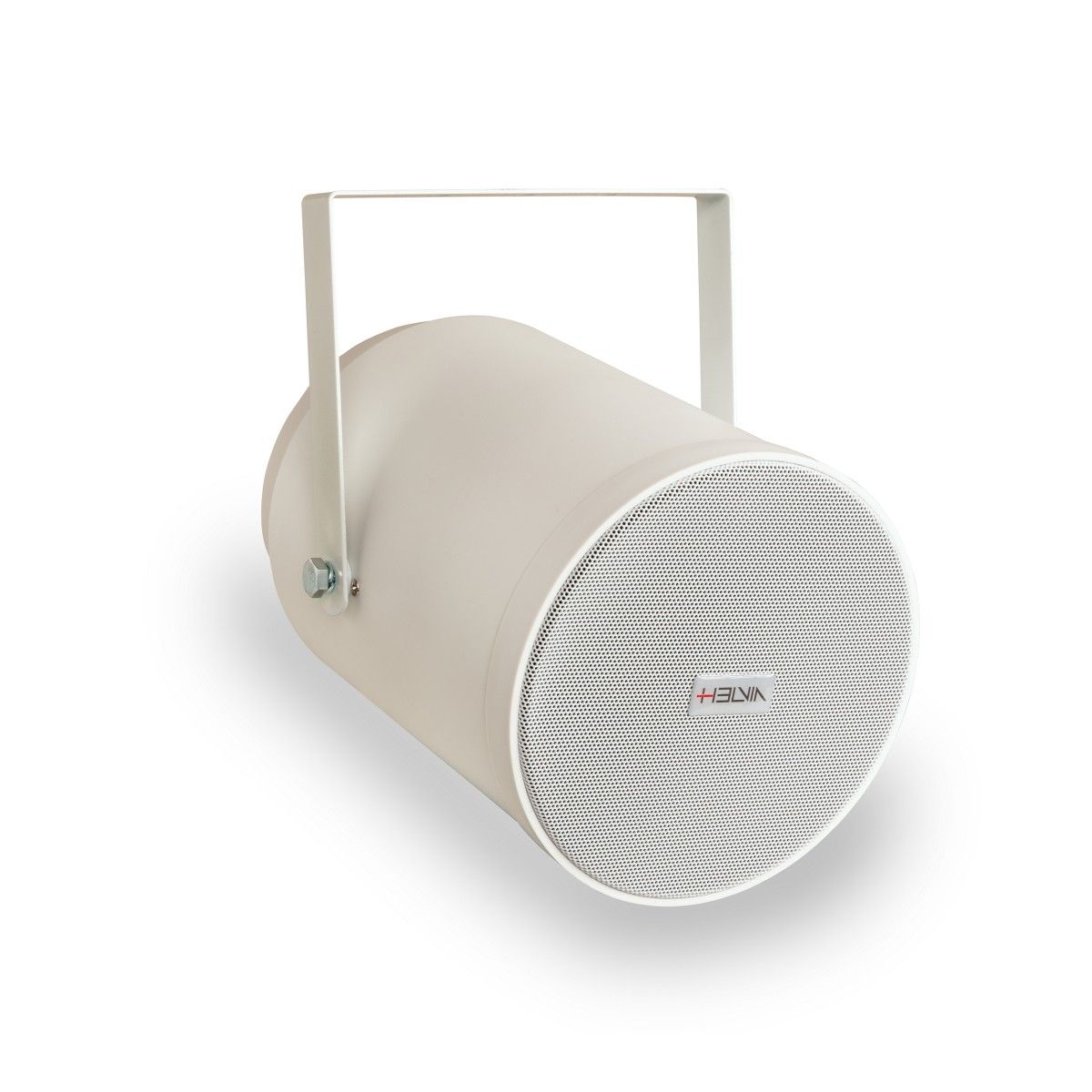

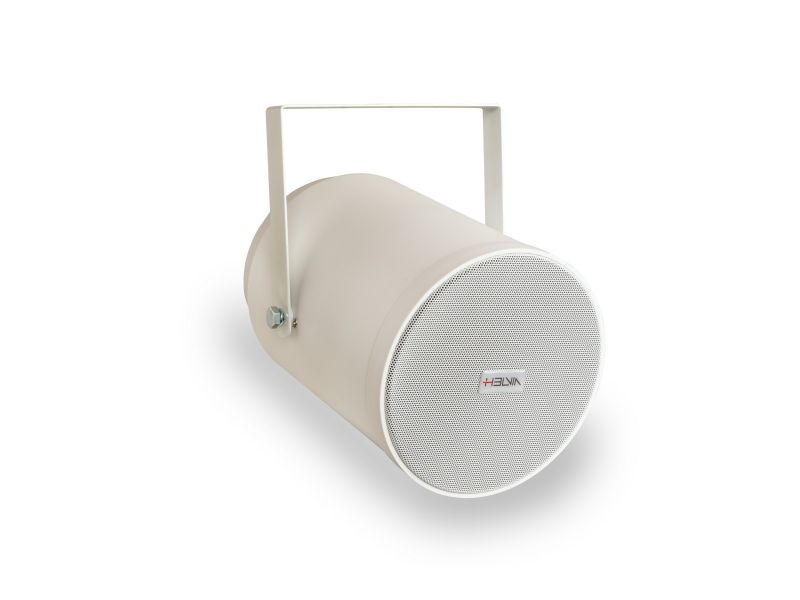

HELVIA EVOCA 20P is high efficiency sound projectors designed to provide good speech intelligibility and background music in a wide variation of applications, and are perfect suited to be used in large 100V broadcast systems such as shopping malls, stations, airports, etc. It is fitted with a 6.5" broadband loudspeaker and the power is adjustable by the integrated 100V line transformer with power taps for 20Watt, 10Watt and 5Watt at 100 Volt. The speaker can be easily mounted to any wall or ceiling by using the stainless-steel mounting bracket. Thanks to the weatherproof treated ABS housing with white weatherproof coated aluminum grill, the speaker has an IP56 Ingress Protection standard, which make it suitable for indoor as well as outdoor installations.

  • High Speech Intelligibility and Sound Quality
  • Integrated 100V Line Transformer with 3 power taps
  • 6.5inch 2-Way Coaxial Speaker System
  • Easily mounted to any wall or ceiling
  • IP56 Ingress Protection Standard
  • Weatherproof Treated ABS Housing
  • Weatherproof Coated Aluminum Grill

Parametre

System type Coaxial 2-Way Speaker
RMS Power @ 100V 20W / 10W / 5W
Impedance 500O / 1kO / 2kO
Max SPL 109
Frequency Range 100Hz-20KHz
Sensitivity 85dB (1W@1m)
Low Frequency Woofer 6.5" PP Cone Woofer
High Frequency Driver 0.5" PEI Tweeter
Ingress Protection Rating IP56
Operating Temperature –20°C to + 60°C
Construction ABS
Mounting Steel C-Bracket
Mounting holes 3x Ø7.5mm (0.03 inch) holes with 30mm (1.2 inch) space
Front finish Aluminum Grill
Color White
Dimensions (Ø×D) 177 × 260 mm (6.97 x 10.24 inch)
Projector Weight 2 kg – 4.4 lbs.
Packing Size 195 x 185 x 300 mm (7.68 x 7.28 x 11.81 inch)
Gross Weight 2 kg – 4.4 lbs.

Na stiahnutie

Produktová karta EVOCA20P [Eng][Ita] EVOCA Series - User Manual V1.1.pdf
